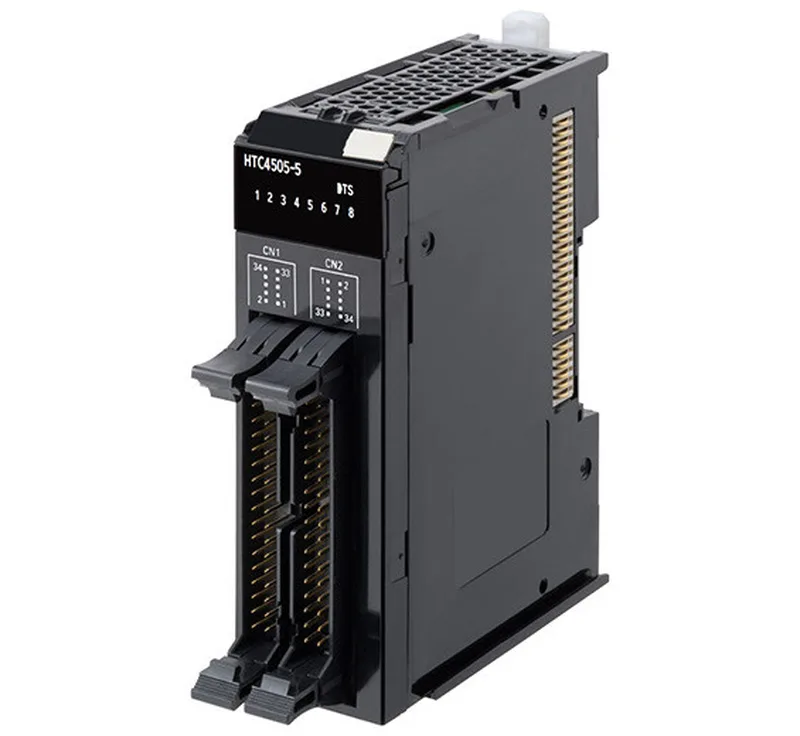

Omron NX-HTC4505-5
MPNNX-HTC4505-5
NX-HTC Advanced Temperature Controller|Addition to Omron's NX I/O Series, providing high resolution readings and predictive maintenance capabilities.
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Temp-Input |
| Mounting | DIN Rail |
| Input type | Universal Temp. Input |
| Output signal | Voltage Output (for driving SSR) |
| DIN modules | 30mm |
| Analog inputs | Thermocouple, RTD, analog voltage, analog current |
| Terminal type | Mil connector |
| Output voltage | 24 VDC |
| Special function | Temp-Input |
| Accuracy at 25°C | ±5% |
| NX power consumption | 1.65 W |
| Number of analog inputs | 8 |
| Number of output points | 8 |
| Resolution (Conversion time) | 0.01°C |
| NX-PF power supply required | Yes |
MPN
NX-HTC4505-5
