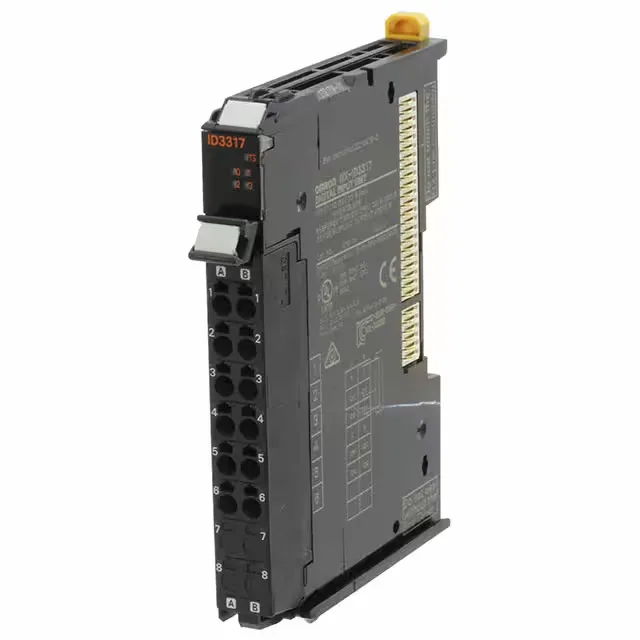

NX-ID3317 Input Module, 4 Digital Inputs, NX Series, Spring Terminal, DIN Rail, 0-55°C, CE/cULus, Lloyd, NK.
| Parameter | Value |
|---|---|
| Series | NX |
| For use with / related products | NX Series |
| Parameter | Value |
|---|---|
| Digital inputs (count and type) | 4 - Digital |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Termination style | Spring Terminal |
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Agency approvals | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Input Module |
| Weight | 0.143 lb (64.86 g) |
NX-ID3317 is a 4-point digital input slice for the NX backplane. Spring terminals accept wiring, mounts on DIN rail. Operating range 0-55°C ambient – standard cabinet spec, not for furnace-adjacent locations. Approvals cover CE, cULus, C-Tick, KC, Lloyd, and NK – sufficient for most industrial control panels. Lifecycle status is active.
It is an Input Module with 4 digital inputs.
It belongs to the NX series.
Approvals include CE, cULus, C-Tick, KC, Lloyd, and NK.
