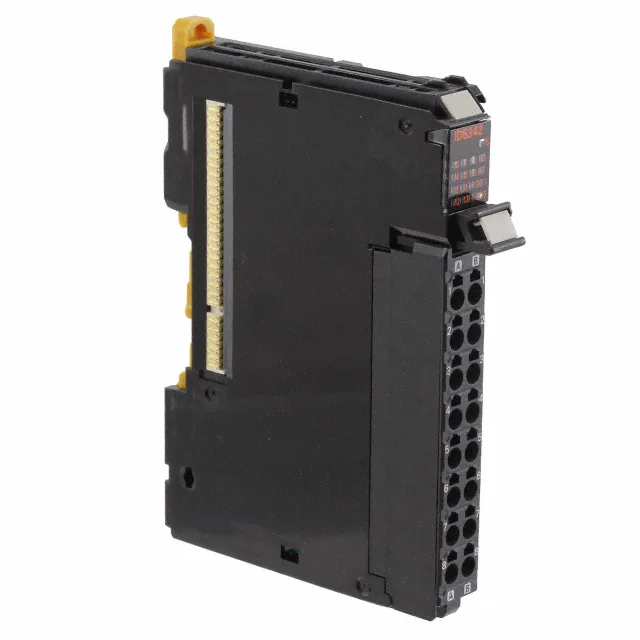

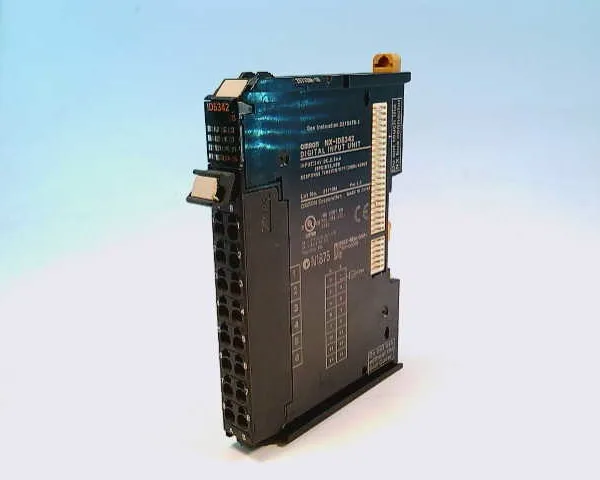

The NX-ID5342: 16-point digital input module from the Omron NX series rated at 28.8 V. It mounts on the NX backplane via DIN rail with spring terminals and holds approvals CE, cULus, C-Tick, KC, Lloyd, and NK. Operating range of 0°C to 55°C covers most cabinet environments without forced cooling.
Omron NX-ID5342 NX Input Module, 16 Digital Inputs 28.8VDC
MPNNX-ID5342
Active
Omron NX-ID5342 digital input module, 16 digital inputs, 28.8 V, spring terminal, DIN rail mount.
$96.65 – $180.26Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | NX |
| For use with / related products | NX Series |
Inputs
| Parameter | Value |
|---|---|
| Digital inputs (count and type) | 16 - Digital |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
Mechanical
| Parameter | Value |
|---|---|
| Termination style | Spring Terminal |
| Mounting type | DIN Rail |
Approvals
| Parameter | Value |
|---|---|
| Agency approvals | CE, cULus, C-Tick, KC, Lloyd, NK |
Other specifications
| Parameter | Value |
|---|---|
| Type | Input Module |
| Weight | 0.143 lb (64.86 g) |
Product details
Frequently asked questions
What is the closest functional second-source for NX-ID5342?
Among the peers listed (CP1W-32ET, CP1W-32ET1), neither is a functional second-source. They are output modules with screw terminals, while the NX-ID5342 is an input module with spring terminals, belonging to a different I/O system.
What is NX-ID5342's listed type and series?
It is an Input Module belonging to the NX series, specifically a 16-point digital input module.
Will NX-ID5342 drop into a panel specified around CP1W-32ET without rewiring?
No. The CP1W-32ET is an output module with screw terminals; the NX-ID5342 is an input module with spring terminals. The backplane bus, wiring scheme, and I/O function are different, preventing a direct swap.
