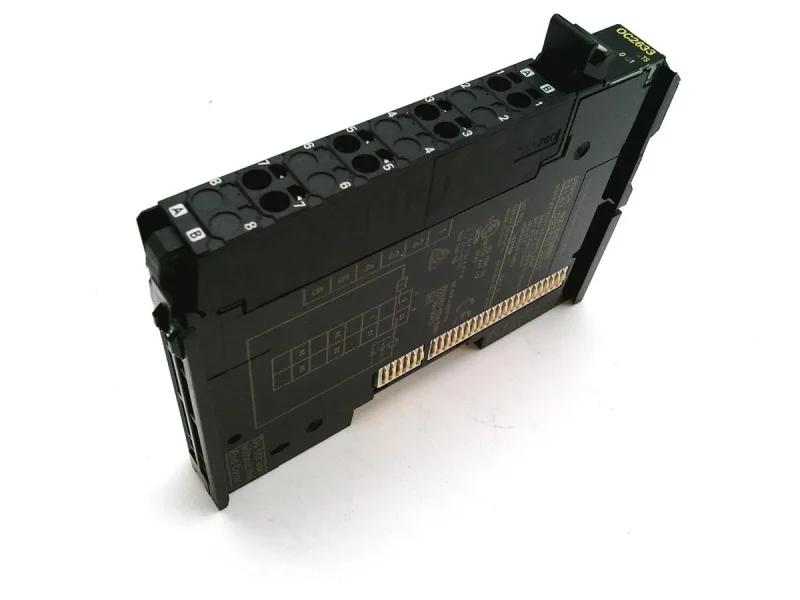

Omron NX series output module, NX-OC2633, 2 relay outputs, spring terminal, DIN rail mount, 0°C to 55°C.
| Parameter | Value |
|---|---|
| Series | NX |
| Type | Output Module |
| Compatible with | NX Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 2 - Relay |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Weight | 0.154 lb (69.85 g) |
The NX-OC2633 is an active-production output module in the Omron NX series, delivering two relay outputs on a spring-terminal slice.
The module uses spring terminals for wiring and mounts on a DIN rail. It carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals.
The CP1W-32ET is not a direct alternative. It has 32 solid-state outputs with screw terminals, while the NX-OC2633 has 2 relay outputs with spring terminals and belongs to a different bus family.
It is an Output Module in the NX Series.
No. The modules are from different families (NX vs. CP1W), have different output counts, termination styles, and bus architectures. Rewiring and possibly a different rack would be required.
The module carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals. Declaration of conformity and product certificate are typically provided with the packaging or can be requested.
It is packaged in bulk and weighs 0.154 lb (69.85 g).
