NX-OD3153, Output Module, NX Series, 4 Solid State Outputs, Spring Terminal, DIN Rail Mount, 0-55°C.
| Parameter | Value |
|---|---|
| Series | NX |
| Type | Output Module |
| Compatible with | NX Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 4 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Weight | 0.154 lb (69.85 g) |

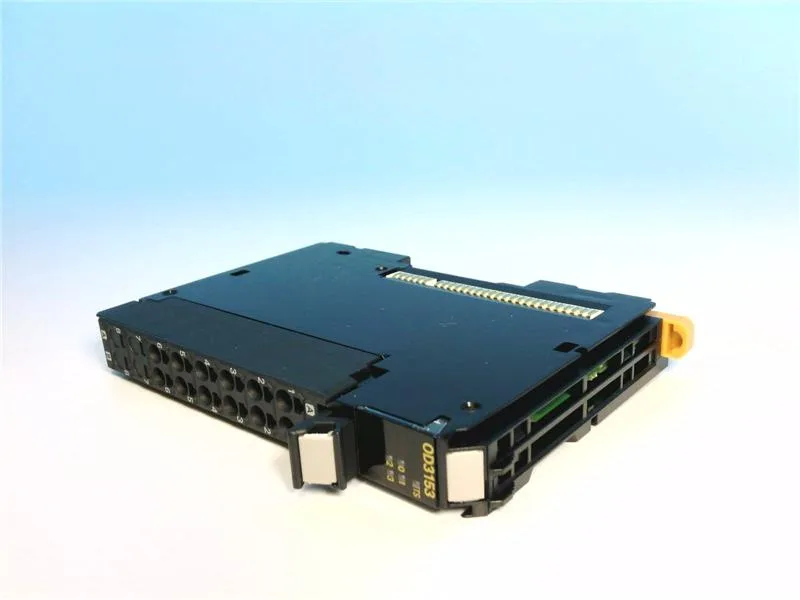

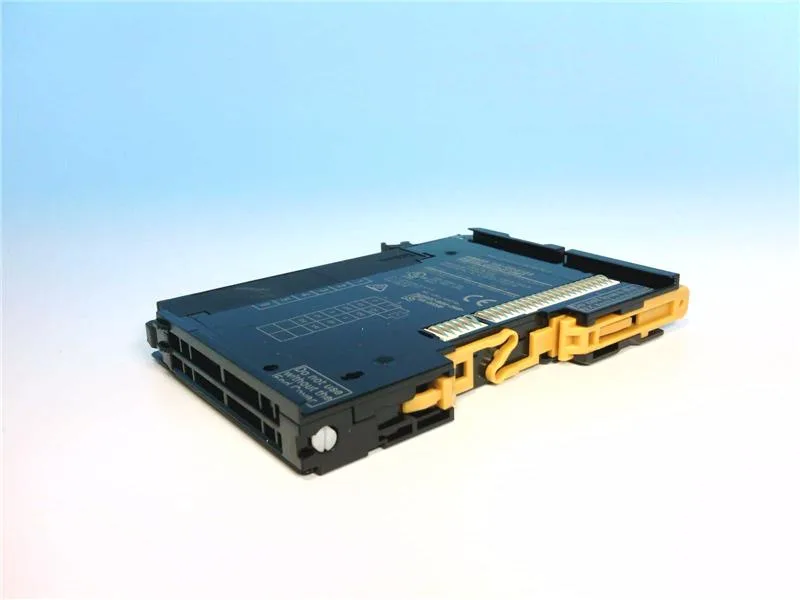

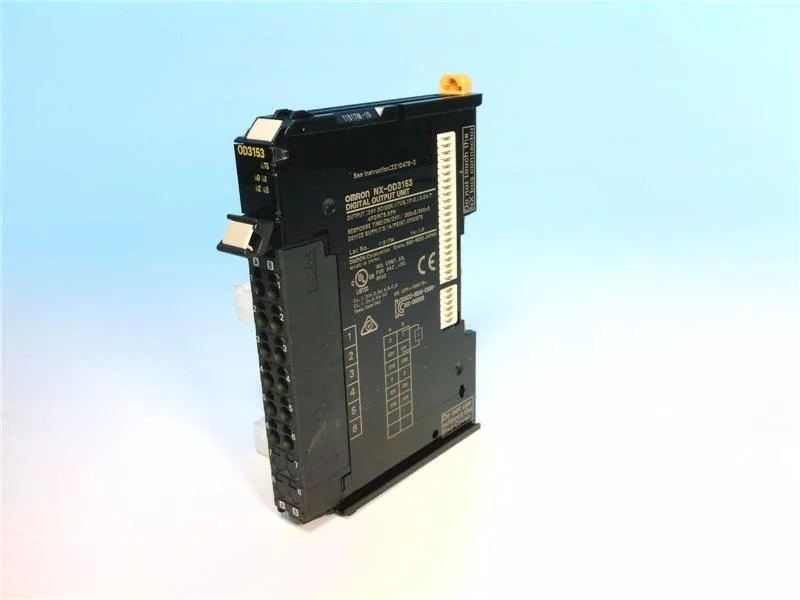

The NX-OD3153 is a 4-channel solid-state output module in the NX I/O family. It mounts on a DIN rail and terminates via spring-clamp terminals. Rated ambient 0 to 55 °C. This is the output slice that belongs on an NX bus coupler — no field-level wiring beyond the spring cage.

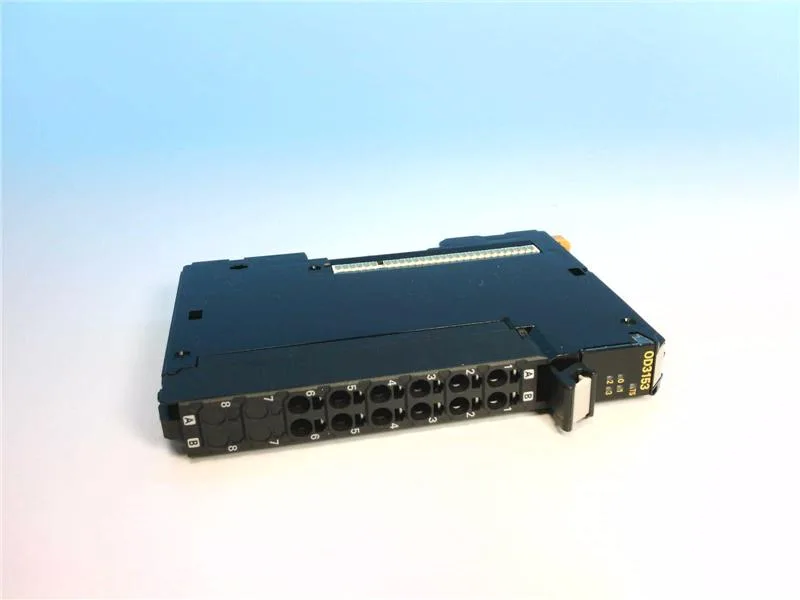

Spring-cage terminals; DIN-rail mount.
Approvals: CE, cULus, C-Tick, KC, Lloyd, NK — covers Europe, US/Canada, Australia, Korea, and marine (Lloyd's, NK).
NX-OD3257 has identical recorded specifications — same type, channel count, termination, approvals, and dimensions. It is a direct functional cross.
It is an Output Module in the NX Series.
The module holds approvals: CE, cULus, C-Tick, KC, Lloyd, and NK.
