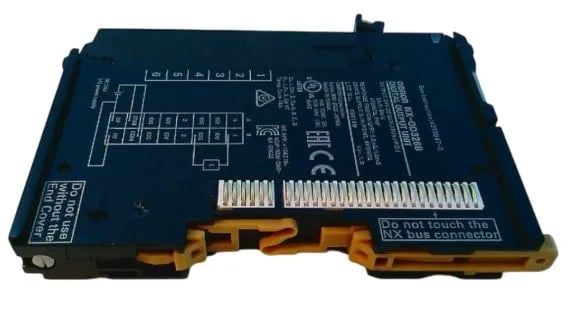

Omron NX-OD3268

Omron NX-OD3268 Digital Output Module, 4 Transistor Outputs

MPNNX-OD3268
Active

Omron NX series, NX-OD3268, Digital Output Module, 4 transistor outputs, 24 VDC, push-in terminals, DIN rail mount.

$64.26Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

NX-OD3268 specifications
ParameterValue
Module typeDigital Output Module
Output signalTransistor
MountingDIN Rail Mount
Termination typePush-In Terminal
Operating voltage max. - DC24 V
Outputs4
Suitable forNX CPU;EtherCAT Coupler

Product details

Why CP2E-E20DR-A Is Not a Substitute

A common wrong cross-reference in procurement is the CP2E-E20DR-A—a completely different Omron product family. The CP2E-E20DR-A is a PLC CPU with integral I/O, not a remote I/O slice. It uses a 100-240 VAC power supply and screw terminals; the NX-OD3268 is a 24 VDC bus-powered module with push-in terminals. They share zero physical or electrical connectivity. If your panel was specified around the CP2E system, this NX module won't even mount on the same DIN rail without an adapter. Second-source? There is no second-source for this NX slice; order it by the exact MPN from Omron's authorized channel.

Mounting & Integration – DIN Rail Checklist

Four transistor outputs are sink (NPN) configuration rated for 24 VDC.

Frequently asked questions

What is the output configuration of NX-OD3268?

It provides 4 digital outputs using transistor (NPN) type, rated for 24 VDC maximum. Each output can be configured via the NX I/O map in Sysmac Studio.

What systems is this module compatible with?

The module is designed for Omron NX-series CPUs and EtherCAT couplers. It uses the NX backplane bus for communication and power.

MPN
NX-OD3268
