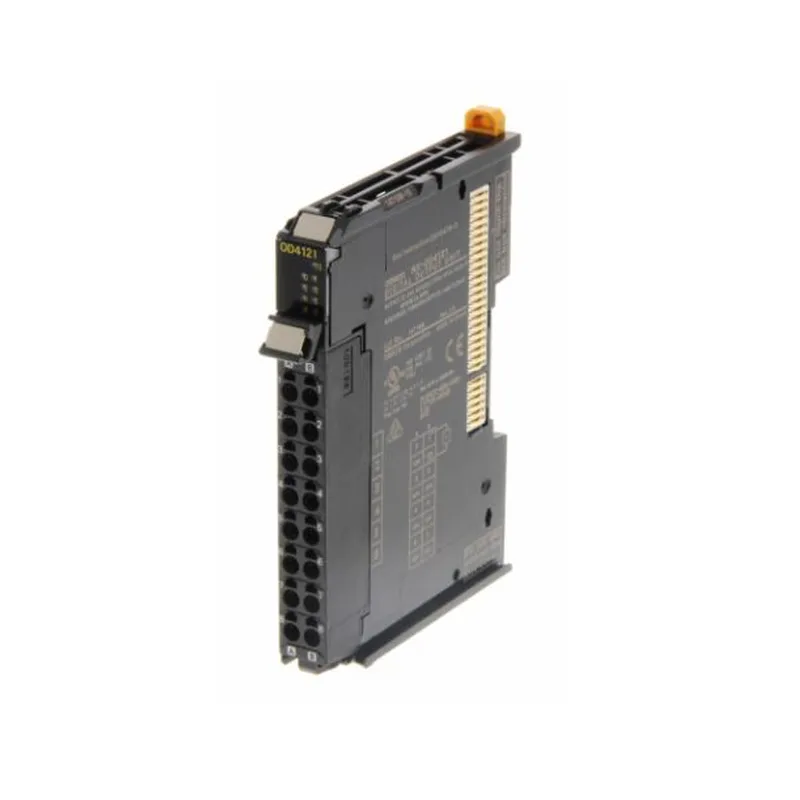

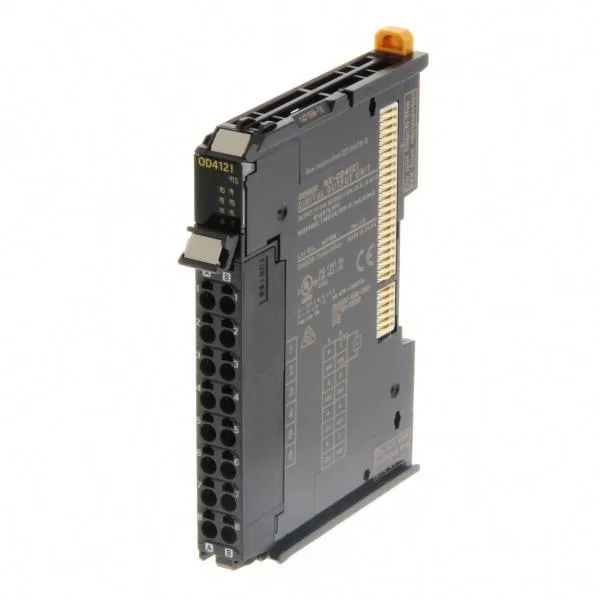

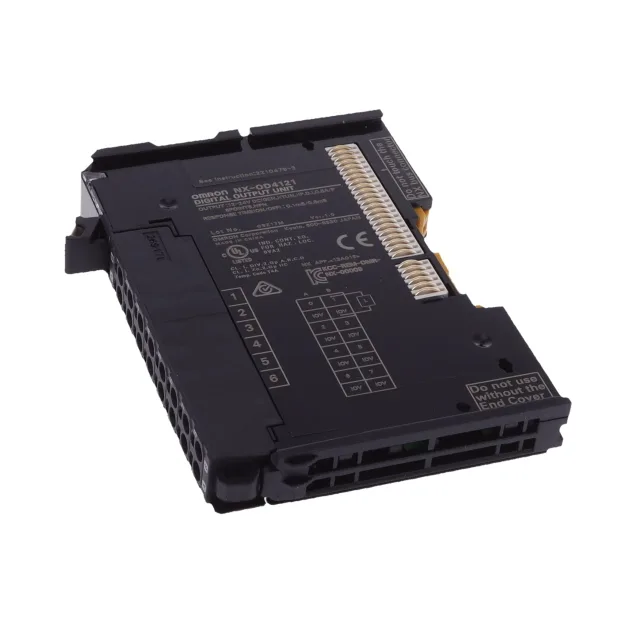

Omron NX-OD4121 — Digital Output Modules

Omron NX-OD4121 Output Module, 8 Solid State, Active

MPNNX-OD4121
Active

Omron NX Series Output Module, NX-OD4121, 8 Solid State Outputs, Spring Terminal, DIN Rail, Active.

$65.02 – $165.11Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

NX-OD4121 — Identification
ParameterValue
SeriesNX
TypeOutput Module
Compatible withNX Series
NX-OD4121 — Outputs
ParameterValue
Outputs and output technology8 - Solid State
NX-OD4121 — Environmental
ParameterValue
Operating temperature range0°C~55°C
NX-OD4121 — Mechanical & Connection
ParameterValue
Mounting typeDIN Rail
Termination styleSpring Terminal
NX-OD4121 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, C-Tick, KC, Lloyd, NK
NX-OD4121 — Other specifications
ParameterValue
Weight0.154 lb (69.85 g)

Product details

Omron NX-OD4121 is an output module with 8 solid-state outputs, part of the NX series I/O system. It mounts on DIN rail using spring-clamp terminals and carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals, covering most global machine certification needs. Rated for 0°C to 55°C ambient, it fits standard industrial panel environments without derating across most of the range.

Specifying this module against an RFQ locks in a current-production part with the approvals needed for global machine builds.

Frequently asked questions

What type and series is NX-OD4121?

It is an output module in the Omron NX series.

What compliance approvals does NX-OD4121 carry?

CE, cULus, C-Tick, KC, Lloyd, and NK.

How many outputs does NX-OD4121 have and what type?

8 solid-state outputs.

MPN
NX-OD4121
