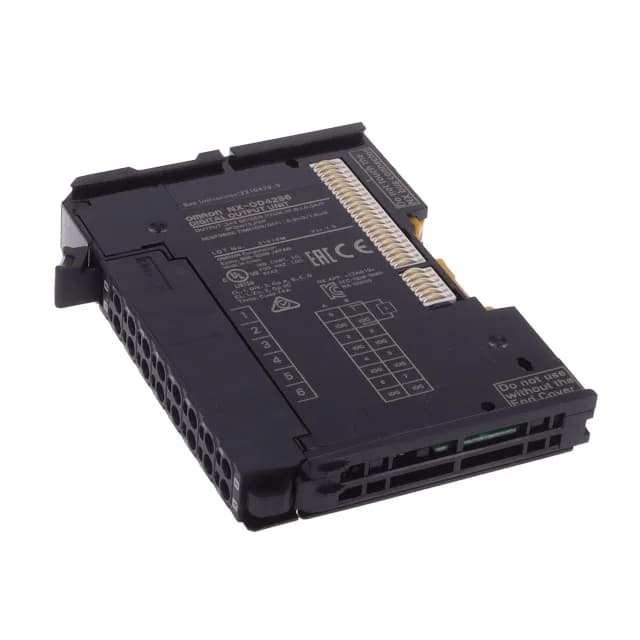

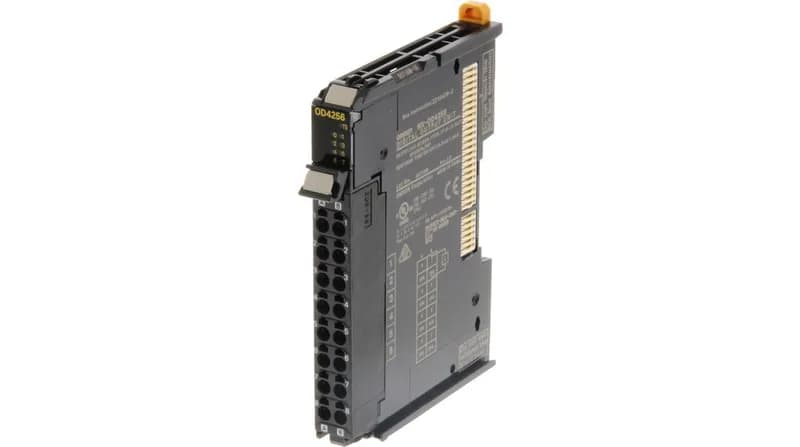

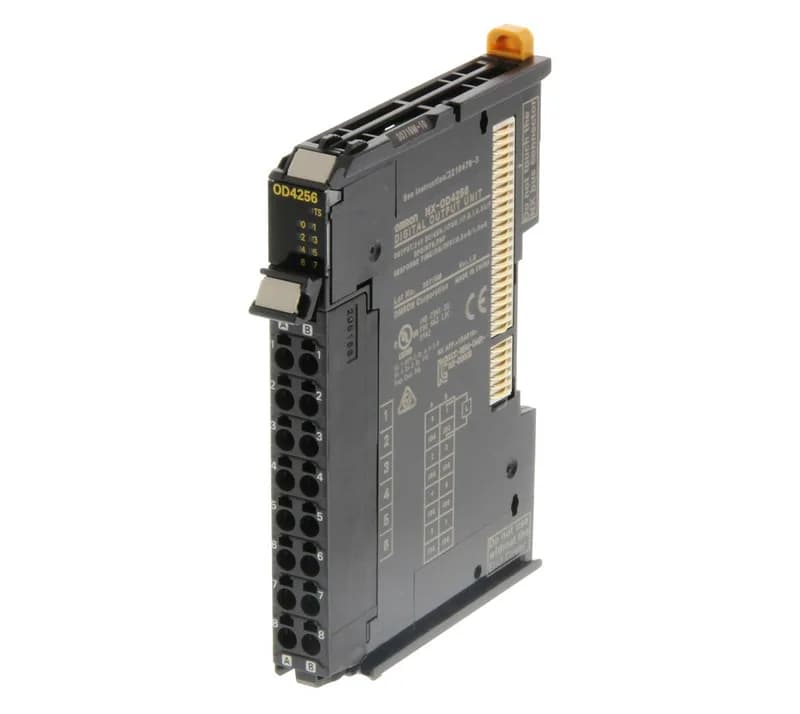

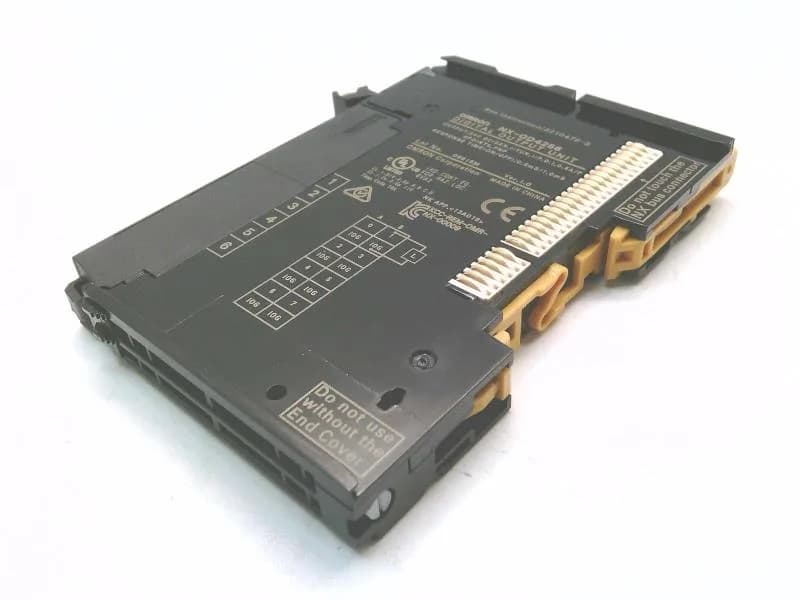

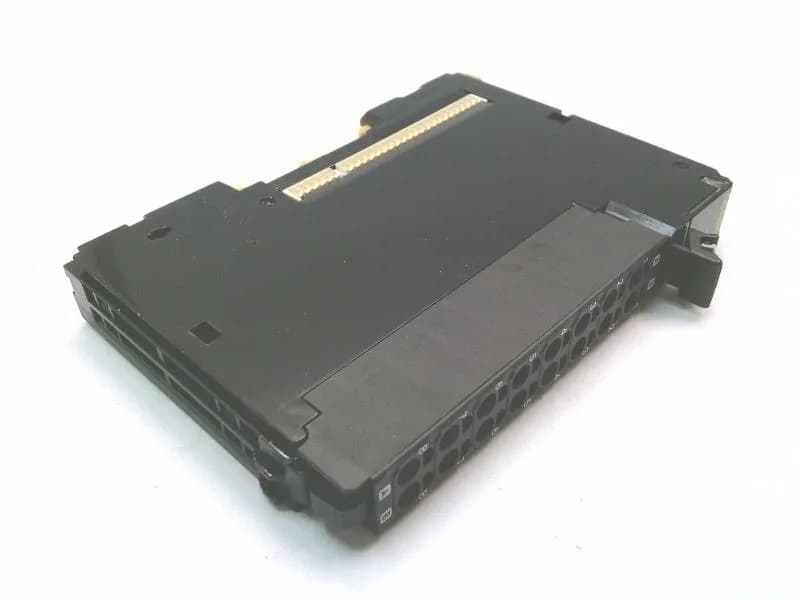

Omron NX Series, Digital Output Module, NX-OD4256, 8 outputs, 500 mA, 12 mm width, push-in terminals.
| Parameter | Value |
|---|---|
| Series | NX |
| Module type | Digital Output Module |
| Output signal | Digital |
| Mounting | DIN Rail Mount |
| Interface | EtherCAT;EtherNet/IP |
| Termination type | Push-In Terminal |
| Operating voltage max. | 28.8 VDC |
| Operating voltage min. | 15 VDC |
| Output current | 500 mA |
| Interfaces | EtherCAT;EtherNet / IP |
| Operating temperature max. | 55 °C |
| Operating temperature min. | 0 °C |
| Depth | 71 mm |
| Width | 12 mm |
| Height | 100 mm |
| Suitable for | NX;NJ;NY;CJ |
| Number of transistor outputs | 8 |
The Omron NX-OD4256 is a digital output slice in the NX series with 8 transistor outputs rated at 500 mA per channel over a 15–28.8 VDC supply range.
Push-in termination. The module provides 8 digital outputs at 500 mA each, 12 mm wide, 100 mm high.
The module is 12 mm wide, allowing high-density mounting on DIN rail.
