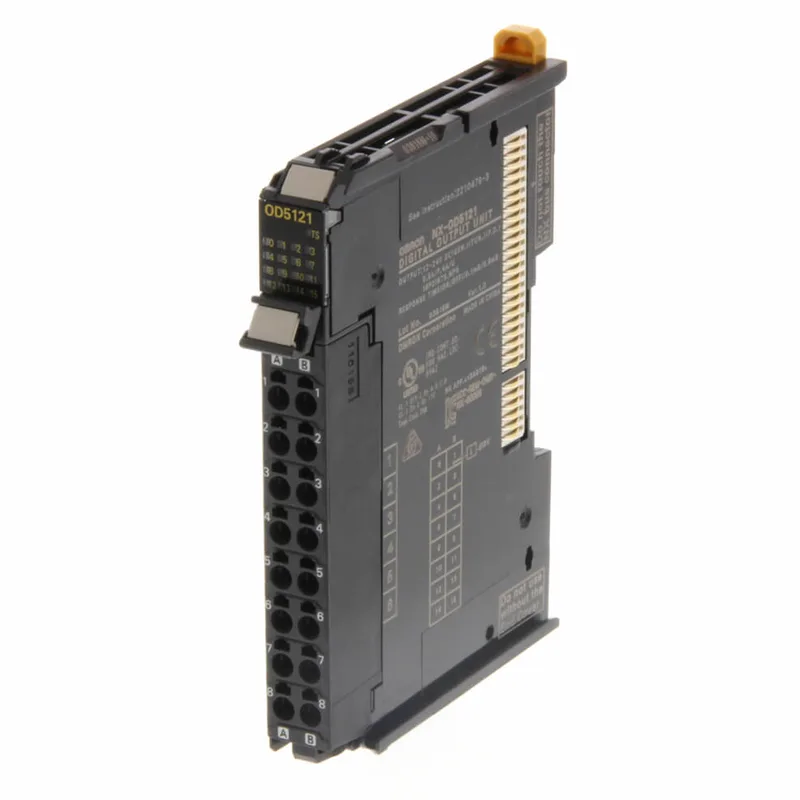

Omron NX-OD5121, NX Series 16-point solid-state output module, spring terminal, DIN rail mounting.
| Parameter | Value |
|---|---|
| Series | NX |
| Type | Output Module |
| Compatible with | NX Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 16 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Weight | 0.154 lb (69.85 g) |
While both are solid-state output modules, the CP1W-32ET belongs to the CP1W series, uses screw terminals, and packs 32 outputs against the NX-OD5121's 16. The NX-OD5121's spring terminal and NX-series backplane form factor mean it won't drop into a panel wired for a CP1W series module without rewiring and a change in I/O mapping.
It is an output module with 16 solid-state outputs.
CE, cULus, C-Tick, KC, Lloyd, NK.
DIN rail mounted; spring-clamp terminals.
