The Omron NX-OD5121-1 is a 16-point NPN digital output module for the NX I/O system, switching 24 VDC loads at 0.5 A per channel with a module limit of 5 A. It uses a screw terminal block, occupies 30 mm on the DIN rail, and includes short-circuit protection on each output. The permitted voltage range is 10.2 to 28.8 VDC, and the output type is NPN (sinking). Signal processing supports free running, standard speed, or synchronous IO-Link master operation.

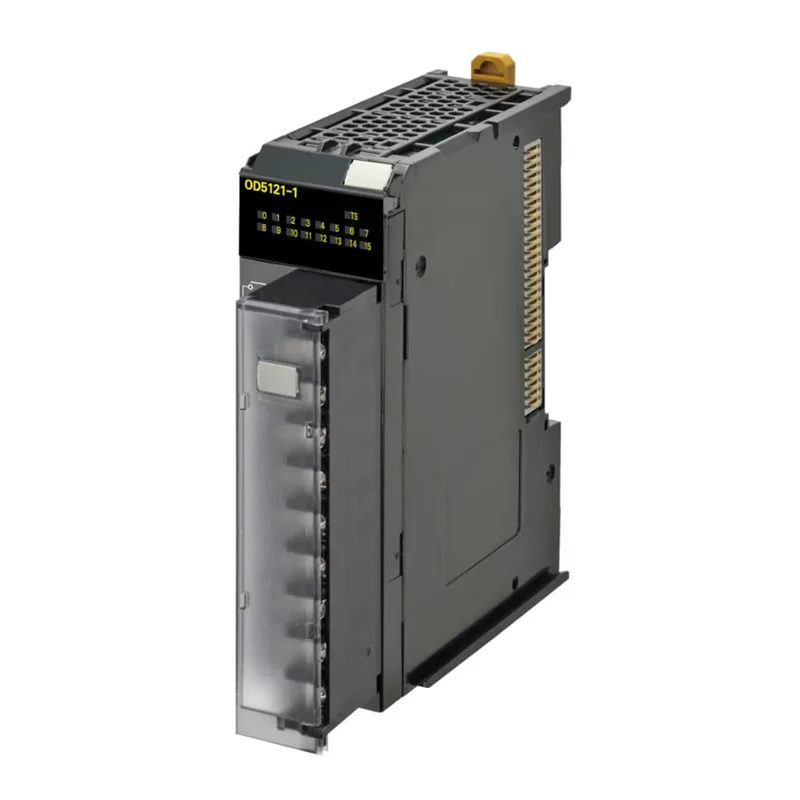

Omron NX-OD5121-1 NX Digital Output Module, 16 NPN 24 VDC, 0
MPNNX-OD5121-1
Active
Omron NX-OD5121-1 NX I/O, 16 digital outputs NPN, 24 VDC, 0.5 A per point, 5 A per unit, screw connector, 30 mm width.
$99.07Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | * |
Product details
Frequently asked questions
What are the key output ratings for NX-OD5121-1?
It provides 16 NPN digital outputs, each rated 0.5 A at 24 VDC (10.2 to 28.8 V range), with a module total of 5 A. Short-circuit protection is included per point.
MPN
NX-OD5121-1
