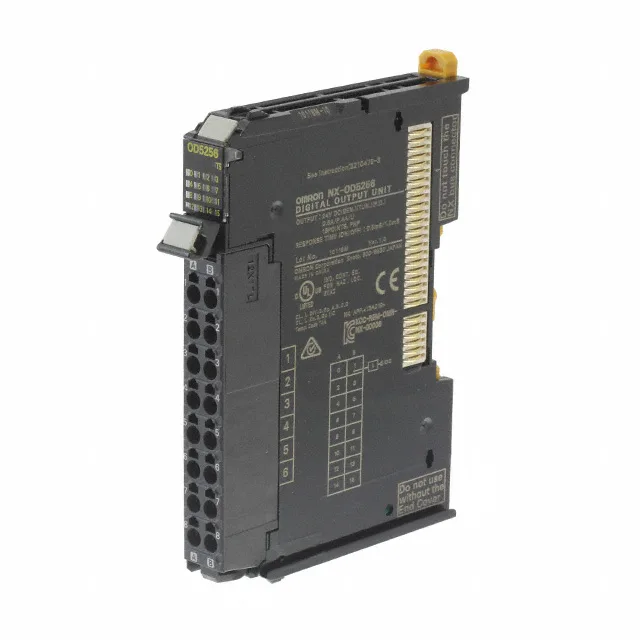

Omron NX Series Output Module, NX-OD5256, 16 solid-state outputs, spring terminal, DIN rail mount, CE/cULus approved.
| Parameter | Value |
|---|---|
| Series | NX |
| Type | Output Module |
| Compatible with | NX Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 16 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Weight | 0.154 lb (69.85 g) |
The Omron NX-OD5256 is a 16-channel solid-state output module in the NX series, terminated with spring-clamp terminals and mounted on a DIN rail. The 16 outputs switch DC loads without moving contacts, so the module fits applications that cycle frequently — indexing stations, pick-and-place grippers, or solenoid banks on a conveyor section — where relay wear would drive a PM schedule.
It is a 16-channel solid-state output module in the NX series, terminated with spring terminals, mounts on a DIN rail, and carries approvals including CE, cULus, C-Tick, KC, Lloyd, and NK.
The NX-OD5256 is part of the NX series and is designed for use with NX-series controllers and I/O systems. Compatibility with a specific CPU like the NX1P2 should be verified against the controller's I/O configuration manual, but the module fits the standard NX backplane.
