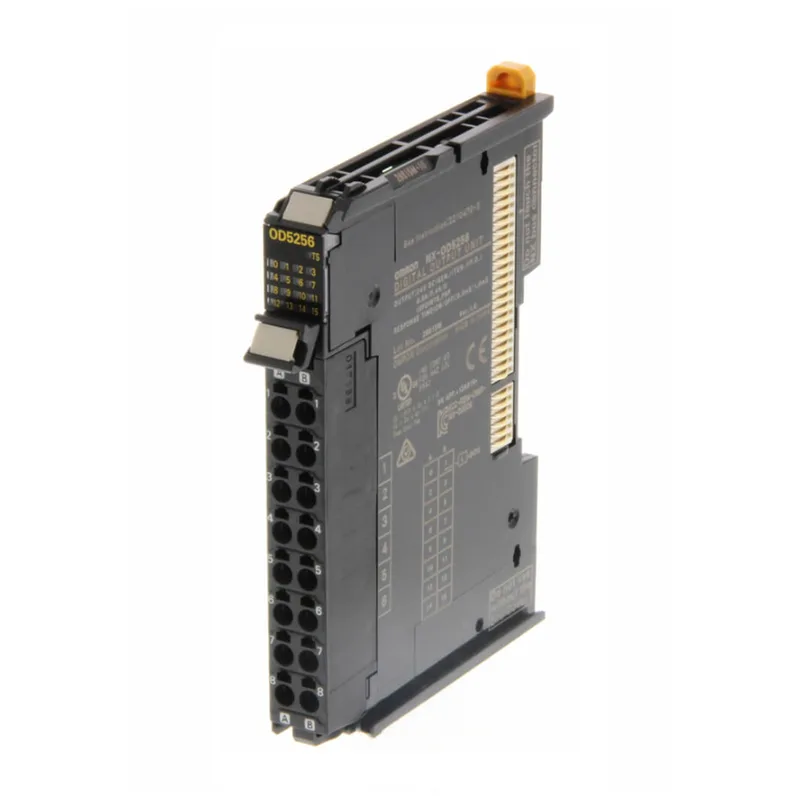

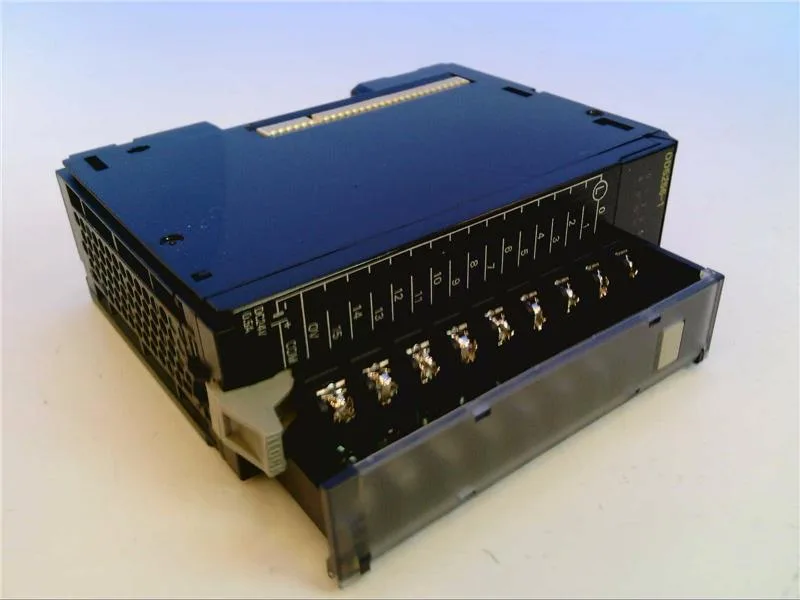

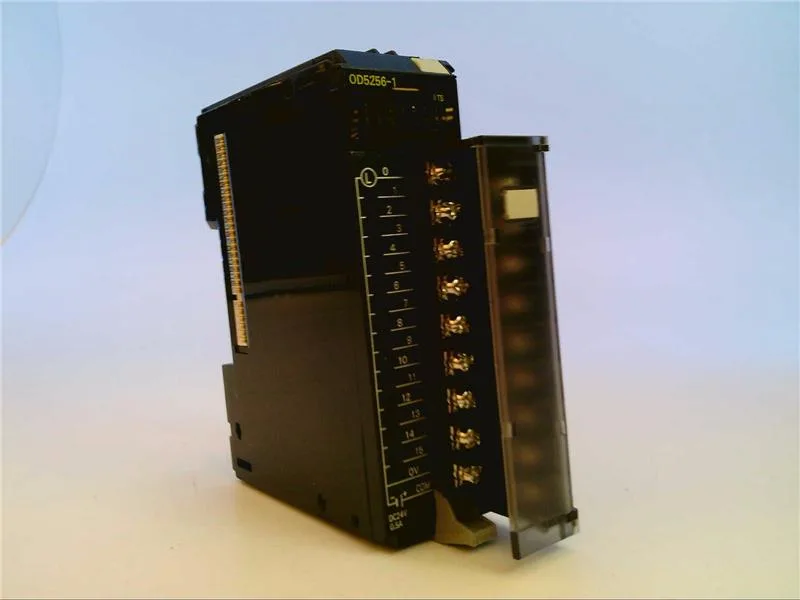

Omron NX-OD5256-1

Omron NX-OD5256-1 16-pt Transistor Output Module

MPNNX-OD5256-1
Active

Omron NX Series Digital Output Module, NX-OD5256-1, 16 Transistor Outputs, 24 VDC, DIN Rail, Screw Terminal.

$106.17Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

NX-OD5256-1 specifications
ParameterValue
Module typeDigital Output Module
Output signalTransistor
MountingDIN Rail Mount
Termination typeScrew Terminal Block
Operating voltage max. - DC24 V
Outputs16
Suitable forNX CPU;EtherCAT Coupler

Product details

The Omron NX-OD5256-1 is a digital output module with 16 transistor outputs rated for 24 VDC. One module occupies a single slot on the NX backplane and is suitable for use with NX CPUs and EtherCAT Couplers. The 16-output density suits applications where multiple discrete loads need switching from a compact footprint, such as valve banks, indicator arrays, or small motor contactors.

Comparison with NX-OD3268

If the approved vendor list specifies NX-OD3268, using NX-OD5256-1 requires a deviation notice and customer approval due to the wiring impact.

Frequently asked questions

Will the NX-OD5256-1 drop into a panel wired for the NX-OD3268?

No. The NX-OD5268 uses push-in terminals and has 4 outputs; the NX-OD5256-1 uses screw terminals and has 16 outputs. Direct substitution would require re-terminating field wiring and adjusting the I/O map.

MPN
NX-OD5256-1
