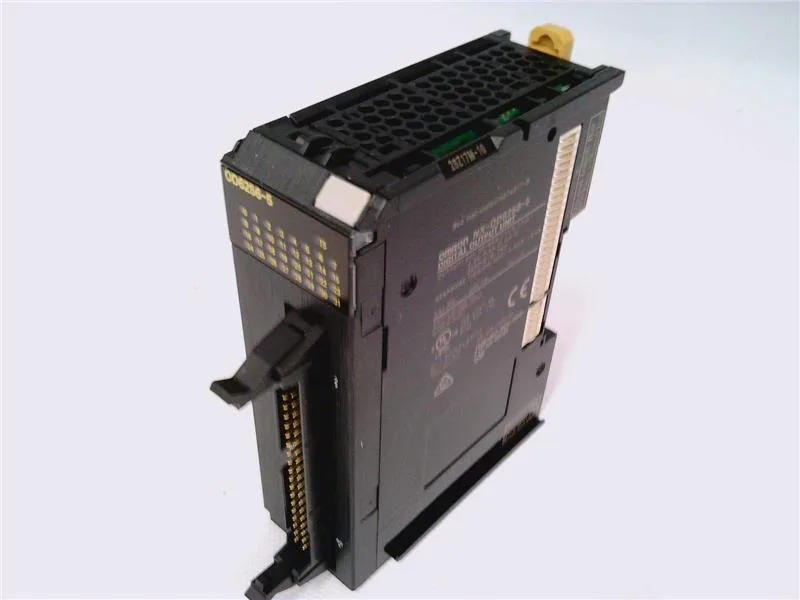

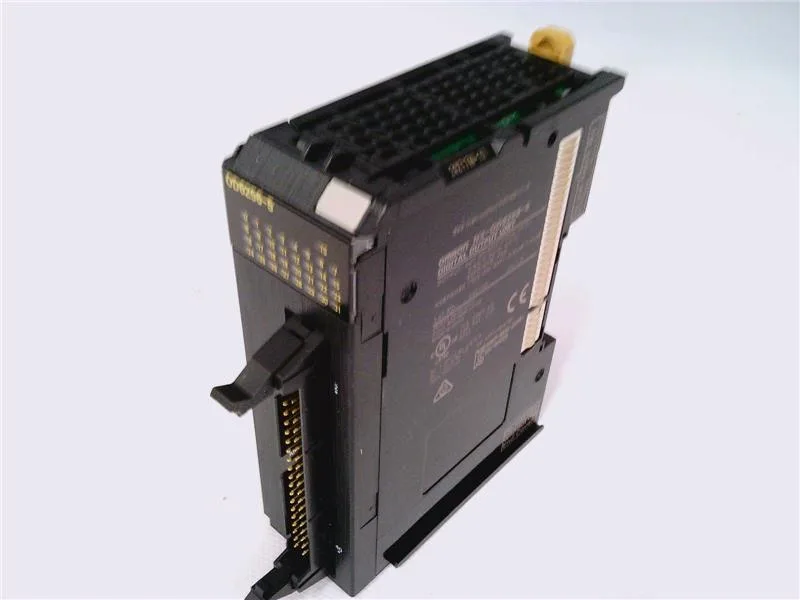

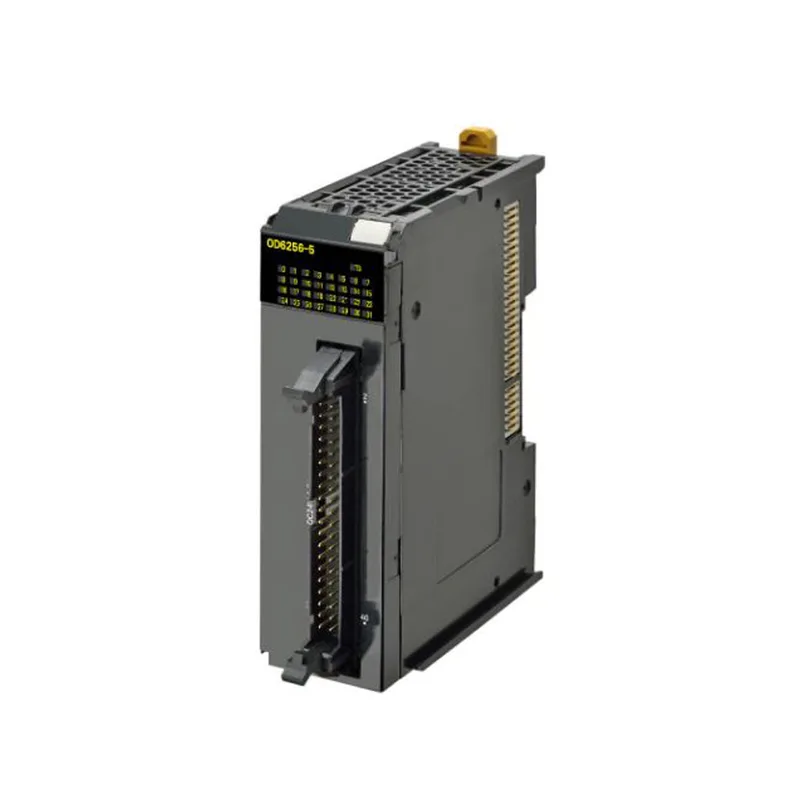

Omron NX-OD6256-5, Digital Output Module, 32 Transistor Outputs, 20.4–28.8 V DC, Push-In Terminal, DIN Rail Mount.
| Parameter | Value |
|---|---|
| Module type | Digital Output Module |
| Output signal | Transistor |
| Mounting | DIN Rail Mount |
| Termination type | Push-In |
| Operating voltage max. - DC | 28.8 V |
| Operating voltage min. - DC | 20.4 V |
| Outputs | 32 |
| Suitable for | NX |
The Omron NX-OD6256-5 is a 32-point transistor digital output module for the NX I/O platform. It accepts supply voltage from 20.4 to 28.8 V DC and terminates with push-in terminals on a DIN rail mount. This is a high-density output block, suitable for driving a large bank of solenoids, indicator lamps, or DC loads in a compact footprint.
This module has 32 transistor outputs; the peer has 4. Supply range 20.4–28.8 V DC vs. 24 V DC.
The NX-OD6256-5 provides 32 transistor outputs, each capable of switching DC loads within its 20.4 to 28.8 V supply range.
No, the NX-OD6256-5 has 32 outputs versus 4 on the NX-OD3268, so a direct replacement would require rewiring and a power budget check. Both share the same push-in terminal style and NX platform compatibility, but the output density and current draw are fundamentally different.
It is a digital output module with transistor outputs, designed for switching DC loads in an Omron NX I/O system.
