The Omron NX-PF0630 is a power supply module for the NX series I/O rack — the slice that feeds 5 to 24 VDC to the backplane and connected smart slices. That 5-24 VDC range covers both the 24 V control bus common in automation panels and the 5 V logic rail used on some older sensor arrays, so you can run the whole slice off a single supply if your voltage is within that window.

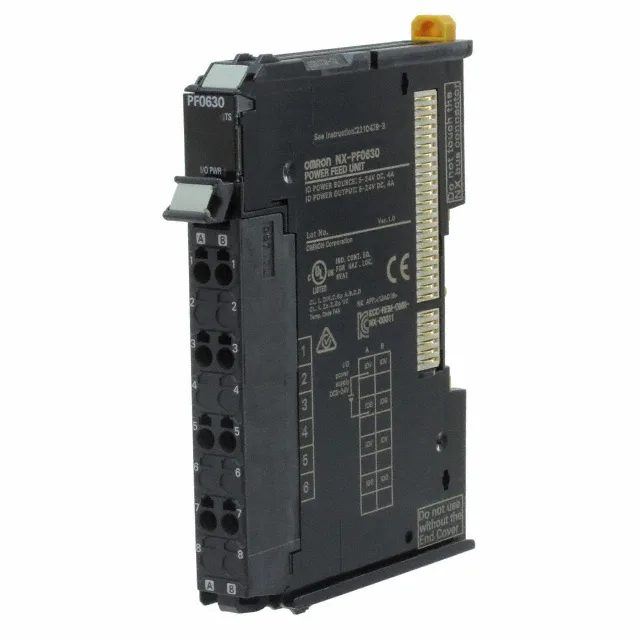

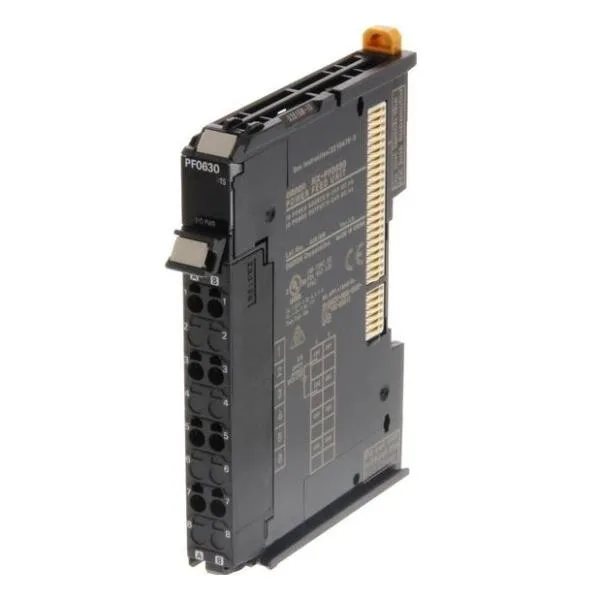

Omron NX-PF0630 Power Supply Module, 5-24 VDC, DIN Rail
MPNNX-PF0630
Active
Omron NX Series Power Supply Module, NX-PF0630, 5-24 VDC, Spring Terminal, DIN Rail, CE, cULus, C-Tick, KC, Lloyd, NK.
$36.00 – $102.10Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NX |
| Parameter | Value |
|---|---|
| Supply voltage | 5 ~ 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.143 lb (64.86 g) |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Power Supply Module |
Product details
Frequently asked questions
Where can I buy NX-PF0630 and how is it quoted?
We source and quote the NX-PF0630 to order against an RFQ. Availability and current pricing are confirmed at quote time through our independent distribution network.
What is the NX-PF0630's type and series?
The NX-PF0630 is a Power Supply Module in the NX Series from Omron.
Will NX-PF0630 drop into a panel wired for CP1W-32ET?
No. The CP1W-32ET is a 32-point output module for the CP1/CJ series PLCs, wired with screw terminals. The NX-PF0630 is a power supply module for the NX I/O rack, wired with spring terminals. Different function, different rack, different wiring.
What compliance documentation does Omron provide for NX-PF0630?
The NX-PF0630 carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals. These cover European safety, US/Canada hazardous location, Australian EMC, Korean KC mark, and marine classification (Lloyd's and Nippon Kaiji Kyokai). RoHS and REACH declarations are standard with the product documentation.
