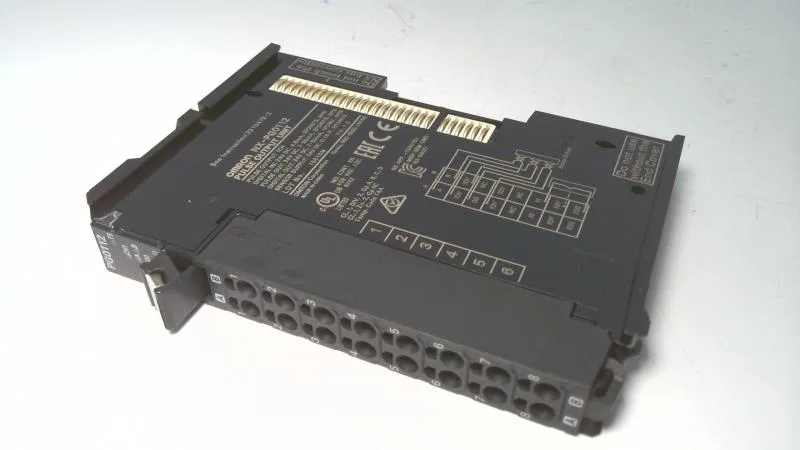

Omron NX-PG0112, NX-series Pulse Output Unit, 1 output, 24 VDC open collector NPN, push-in terminal, DIN rail mount.
| Parameter | Value |
|---|---|
| Module type | Output Module |
| Output signal | Pulse |
| Mounting | DIN Rail Mount |
| Termination type | Push-In Terminal |
| Operating voltage max. - DC | 24 V |
| Outputs | 1 |
| Suitable for | NX CPU;EtherCAT Coupler |
The Omron NX-PG0112 is a single-point pulse output module for the NX-series, delivering one channel of 24 VDC open-collector NPN output. It mounts on DIN rail with push-in terminals and sits on the NX bus behind an NX CPU or EtherCAT Coupler.
Push-in terminals at 24 VDC. One pulse output, NPN open collector.
It provides a single pulse output (1 channel).
No. NX-PG0112 is a pulse output module; NX-OD3268 is a 4-point transistor output module. They serve different functions and are not direct swaps.
