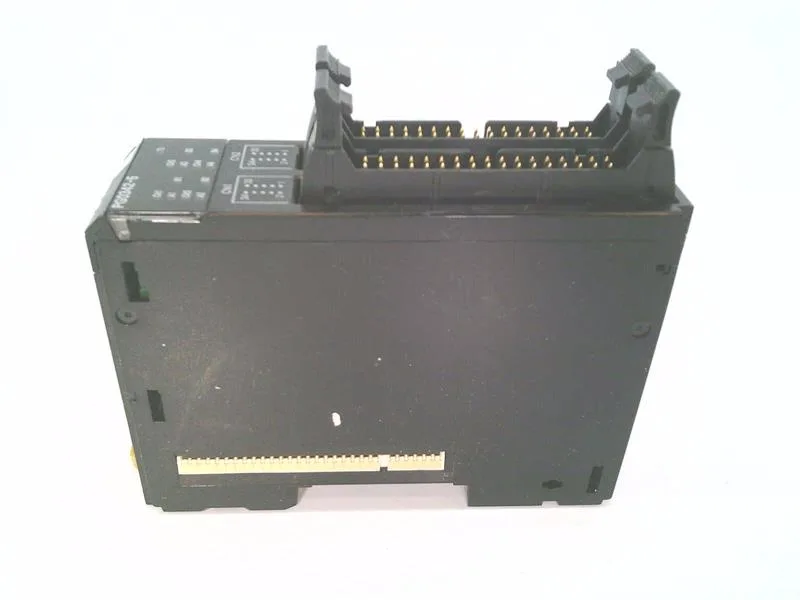

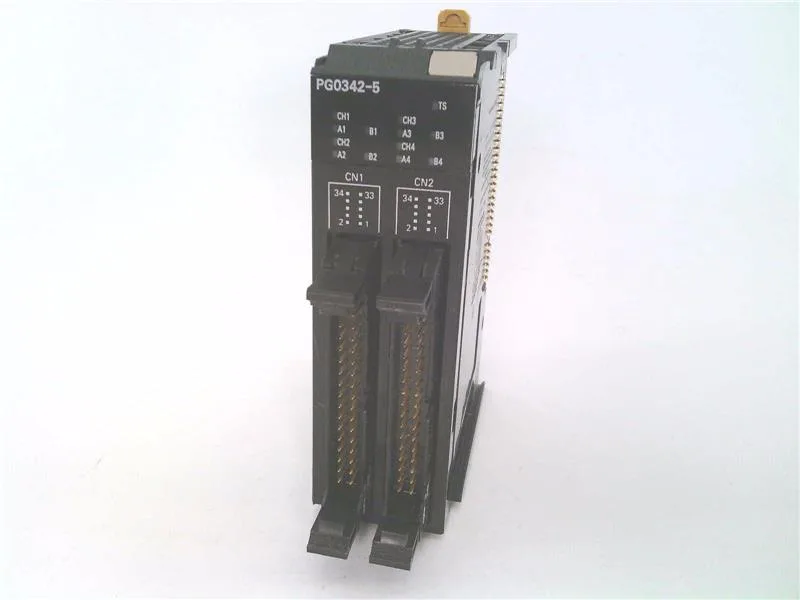

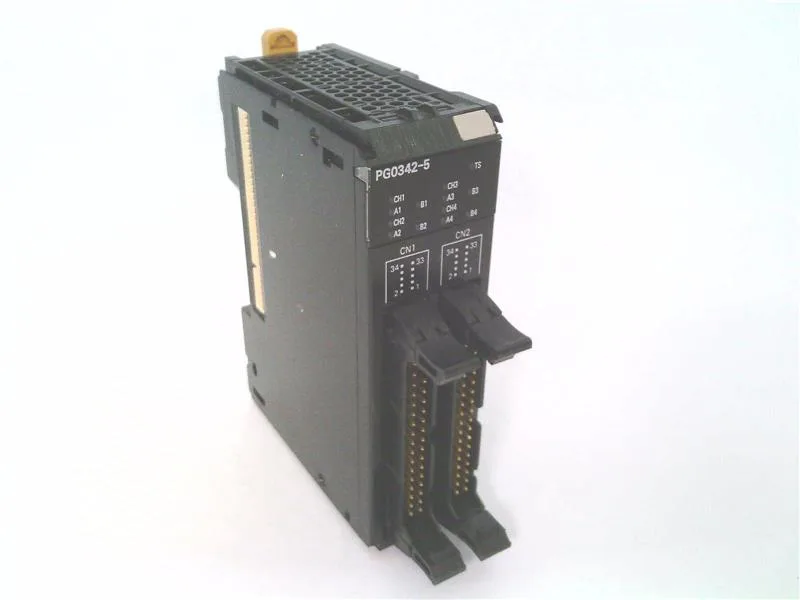

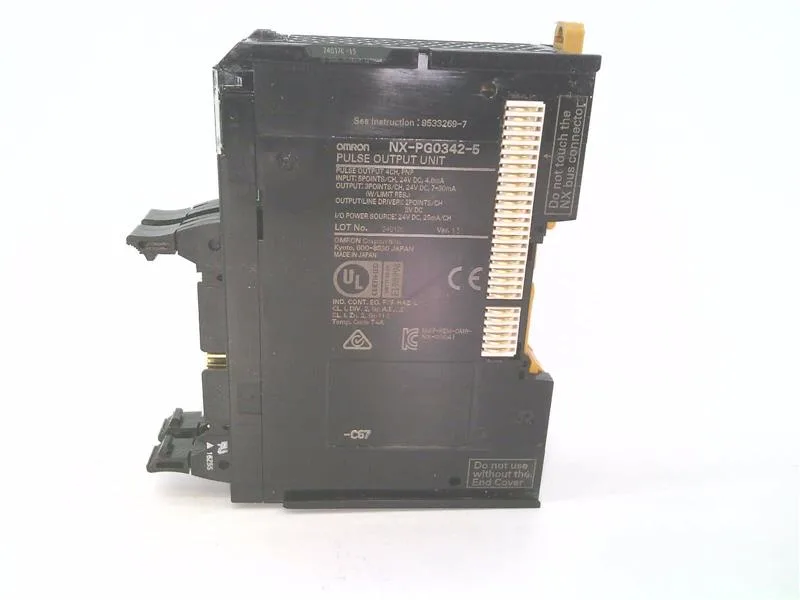

Omron NX-PG0342-5 Motion-IO PLC Module, 4-Axis Pulse Train Output, DIN Rail Mount.
| Parameter | Value |
|---|---|
| Type | Motion-IO |
| Input type | Pulse train |
| Output signal | Line Driver |
| Terminal type | Screwless Clamping Terminal Block, removable |
| Digital input type | PNP |
| 5 VDC current consumption | 1.3W |
| Mounting | DIN Rail |
| DIN modules | 30 mm |
| Standards | cULus (Class I Division 2 Products for Hazardous Locations), NK, Lloyds, EC Directives, and KC Registration |
| Digital input | 4 |
| Number of axis | 4 |
| Maximum position | ±2,147,483,650 |
| Special function | Pulse Output with forward and reverse or pulse and direction |
Connections use a removable screwless clamping terminal block — pull the block for bench wiring, snap it back to install. The screwless clamp takes solid or ferruled stranded wire with a simple push-in action, which saves time on repetitive builds.
Draws 1.3 W from the backplane supply. Carries cULus Class I Division 2, NK, Lloyds, EC, and KC approvals.
It is a Motion-IO module designed for pulse train control of up to 4 axes.
It mounts on a DIN rail with a 30 mm width.
It is approved for cULus (Class I Division 2 hazardous locations), NK, Lloyd's Register, EC Directives, and KC Registration.
