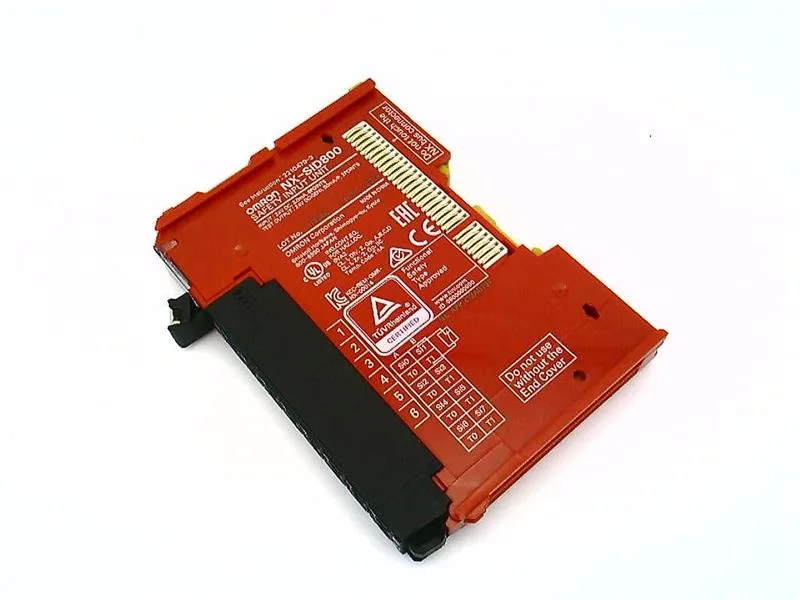

Omron NX series safety input module, NX-SID800, 8 digital inputs, SIL3 / PLe / Category 4, spring terminal, DIN rail mount, 0–55°C.
| Parameter | Value |
|---|---|
| Series | NX |
| Controller type | General Purpose |
| Parameter | Value |
|---|---|
| Safety category (Cat / PL / SIL) | Category 4, PLe, SIL3 |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 8 - Digital |
| Parameter | Value |
|---|---|
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Approval agencies | CE, C-Tick, cULus, KC, TUV, UL |
| Parameter | Value |
|---|---|
| Weight | 0.154 lb (69.85 g) |
| Features | Test Output |
The Omron NX-SID800 is a safety input module in the NX series, providing 8 digital inputs rated for Category 4, PLe, and SIL3 per IEC 61508.
The SIL3 / PLe / Category 4 rating means this module can be used in safety functions up to the highest performance level for machinery, with redundancy and diagnostic coverage built into the input circuit. Approvals include CE, C-Tick, cULus, KC, TUV, and UL.
It supports Category 4, PLe, and SIL3.
Spring terminal.
CE, C-Tick, cULus, KC, TUV, and UL.
