Omron NX-TS2201 — PLCs (Programmable Logic Controllers)

NX-TS2201 NX Series RTD Temp Input, 2-Ch Analog

MPNNX-TS2201
Active

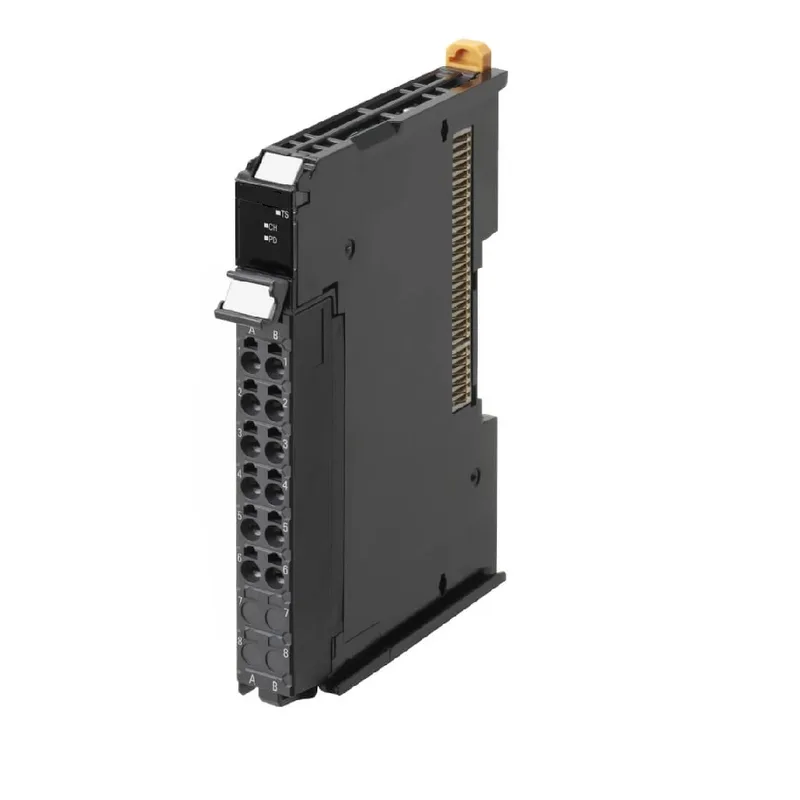

Omron NX Series NX-TS2201 Temperature Input Unit, 2-channel analog RTD, DIN rail mount, spring terminal, active part.

$205.61 – $538.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

NX-TS2201 — Identification
ParameterValue
SeriesNX
NX-TS2201 — I/O
ParameterValue
Inputs (count and type)2 - Analog
NX-TS2201 — Environmental
ParameterValue
Operating temperature range0°C~55°C
NX-TS2201 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.154 lb (69.85 g)
Termination styleSpring Terminal
NX-TS2201 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, C-Tick, KC, Lloyd, NK
NX-TS2201 — Other specifications
ParameterValue
TypeTemperature Control Module
FeaturesRTD

Product details

What it does in the panel

The Omron NX-TS2201 is a Temperature Input Unit in the NX series that takes resistance-thermometer (RTD) signals into the NX bus from two analog inputs. Mounted on DIN rail and terminated via spring terminals, it sits next to the CPU or NX communication coupler and exposes the temperature readings as NX I/O data the controller can read directly. Because both channels are analog RTD-only, the slice is sized for tight panel runs where thermocouple, voltage or current channels are not in scope.

Ratings and the working envelope

Operating range is 0°C~55°C, so the slice is intended for cabinet interiors and not outdoor or unconditioned enclosures. Termination is spring cage on the field side, which keeps the wireman off the screwdriver once the ferrule is crimped, and the DIN-rail mount matches the rest of the NX series so it lands on the same bus slice pattern as its siblings. The approval set covers CE, cULus, C-Tick, KC, Lloyd and NK, which is the same envelope carried by the rest of the NX I/O family.

Frequently asked questions

What is NX-TS2201's listed type on this component line?

Temperature Control Module — specifically a Temperature Input Unit (Resistance Thermometer) in the NX series.

What is NX-TS2201's listed series on this component line?

NX series, for use with NX-series CPUs and communication couplers.

Will NX-TS2201 drop into a panel specified around NX-TS3201 without rewiring?

No. Both are NX-series RTD input slices with the same mechanical pattern, but the NX-TS3201 is a four-channel unit and the NX-TS2201 is a two-channel unit, so the field wiring, NX I/O allocation and tag map have to be reworked. The bus slice and rail footprint match, but the channel count does not.

MPN
NX-TS2201
