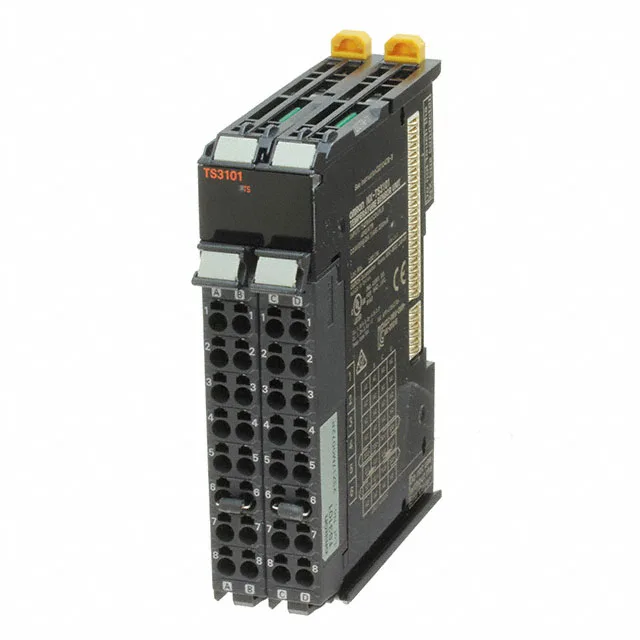

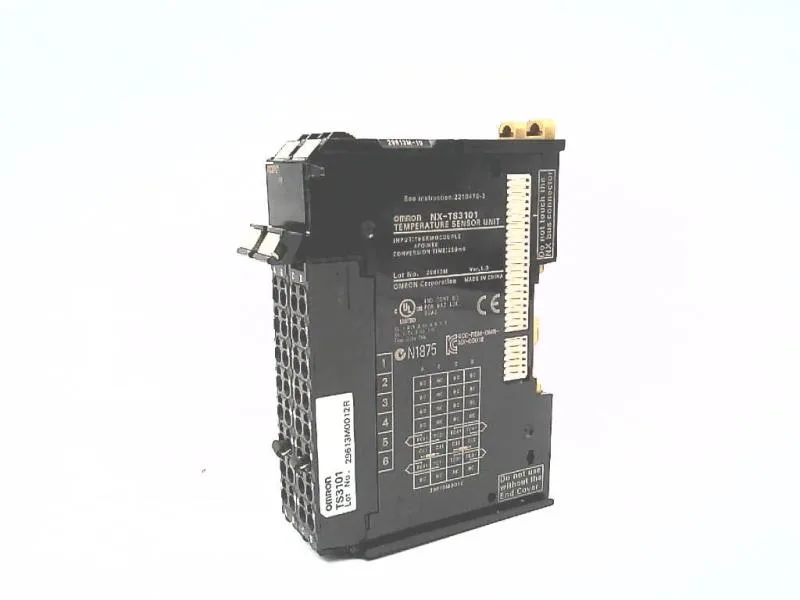

Omron NX-TS3101 — PLCs (Programmable Logic Controllers)

NX-TS3101 Temperature Control Module, 4-Channel TC Input

MPNNX-TS3101
Active

Omron NX-TS3101 Temperature Control Module, 4 Analog Inputs, Thermocouple Types B/E/J/K/L/N/PLII/R/S/T/U, Spring Terminal, DIN Rail.

$262.26 – $706.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

NX-TS3101 — Identification
ParameterValue
SeriesNX
NX-TS3101 — I/O
ParameterValue
Inputs (count and type)4 - Analog
NX-TS3101 — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
NX-TS3101 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.309 lb (140.16 g)
Termination styleSpring Terminal
NX-TS3101 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, C-Tick, KC, Lloyd, NK
NX-TS3101 — Other specifications
ParameterValue
TypeTemperature Control Module
FeaturesType B, E, J, K, L, N, PLII, R, S, T, U

Product details

Sibling NX-TS2101 is the same module but with only 2 analog inputs. Your BOM calls for four TC channels? NX-TS3101 saves a slot and a bus connection. Mechanically identical — same DIN footprint, same spring terminals, same bus connector. Swapping a 2-input panel for the 4-input unit means you gain two spare channels; no rewiring needed on the existing thermocouple pairs.

Mounts on standard DIN rail, termination via spring clamp (no screw tightening). Bus power and communication through the NX backplane connector; no separate loop supply needed. Rated 0°C to 55°C ambient, so keep it out of hot cabinet zones above motor starters. Approvals include CE, cULus, C-Tick, KC, Lloyd, NK — covers most project certification gates.

Frequently asked questions

What's the difference between NX-TS3101 and NX-TS2101?

NX-TS3101 has 4 analog thermocouple inputs; NX-TS2101 has 2. Both support the same thermocouple types and share the same physical form factor, DIN rail mount, and spring terminals.

Will NX-TS3101 drop into a panel wired for NX-TS2101 without rewiring?

Yes. Both modules share the same NX-series bus connection, DIN rail slot dimensions, and termination style. You can swap them without changing wiring for the existing thermocouple pairs; the extra channels remain available for future expansion.

MPN
NX-TS3101
