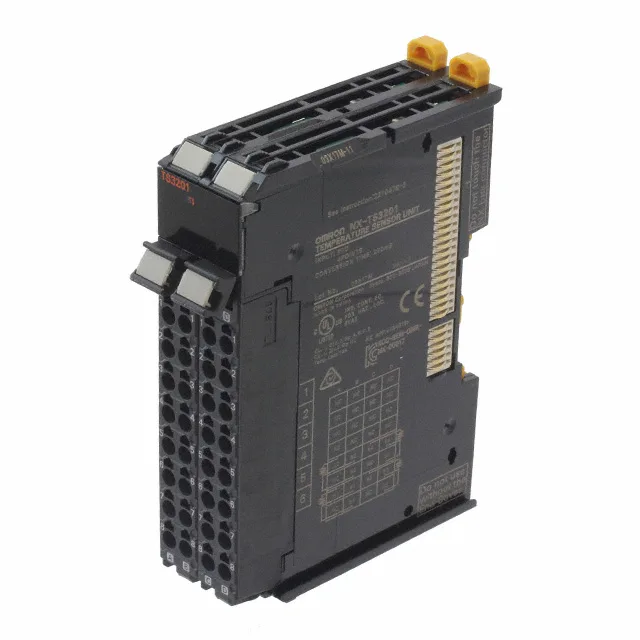

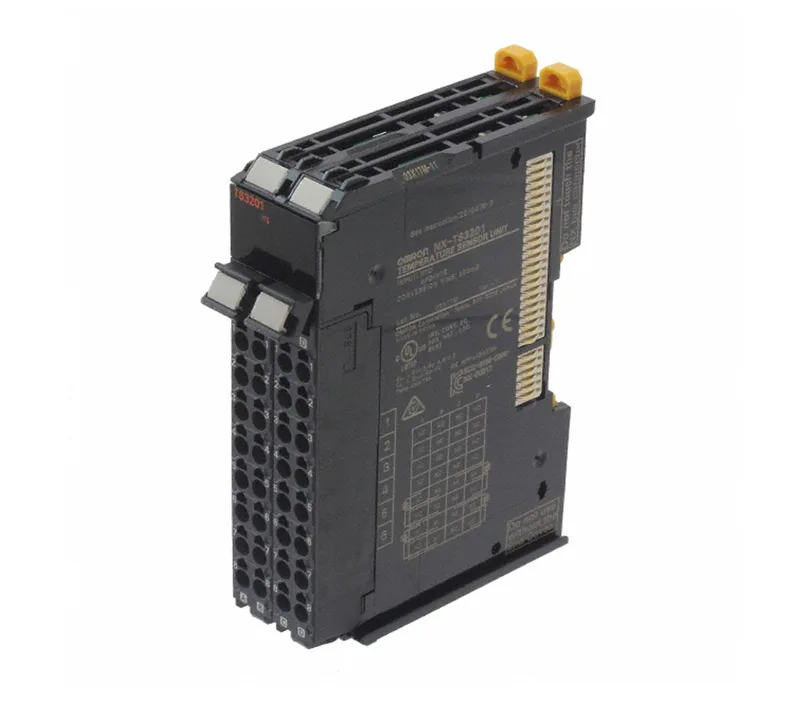

Omron NX-series, Temperature Control Module, NX-TS3201, 4 analog RTD inputs, spring terminal, DIN rail mount, bulk.
| Parameter | Value |
|---|---|
| Series | NX |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 4 - Analog |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.309 lb (140.16 g) |
| Termination style | Spring Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, C-Tick, KC, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Temperature Control Module |
| Features | RTD |
The Omron NX-TS3201 is a temperature input unit that brings four analog RTD channels into an NX-series backplane. Spring terminals accept the RTD field wiring; the module passes temperature data to the CPU over the NX bus. Rated for 0–55 °C ambient and carries CE, cULus, C-Tick, KC, Lloyd, and NK approvals, so it clears most panel certification gates out of the box.
The NX-TS2201 has 2 analog RTD inputs; the NX-TS3201 has 4. Both share the same physical footprint, spring terminals, DIN rail mount, and agency approvals. The TS3201 is the correct choice when you need four RTD channels in one slice.
CE, cULus, C-Tick, KC, Lloyd, and NK. This covers most industrial panels destined for Europe, North America, Australia, Korea, and marine applications.
Physically yes — same DIN rail mounting, same backplane connector, same terminal style. However, the TS3201 requires four RTD inputs; if the panel's field wiring only supports two RTDs, you will need to pull additional wires. The backplane bus handles the extra channels automatically.
