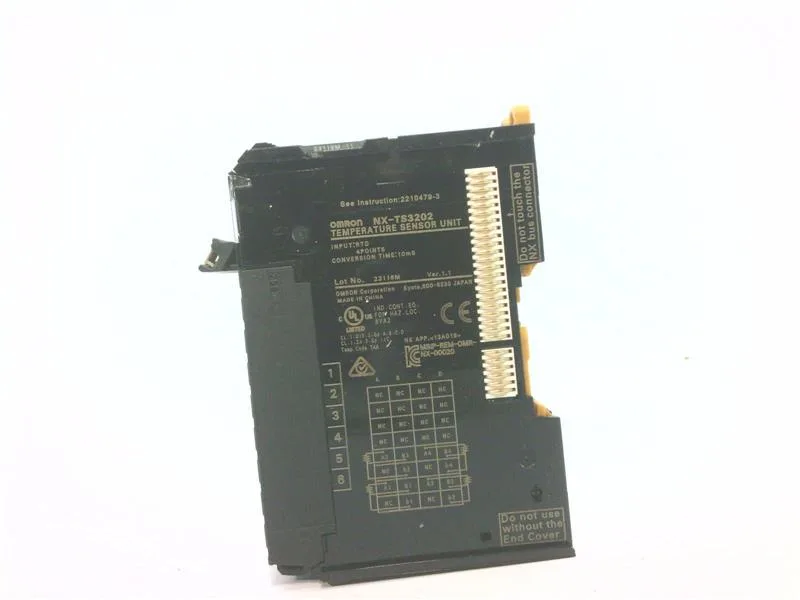

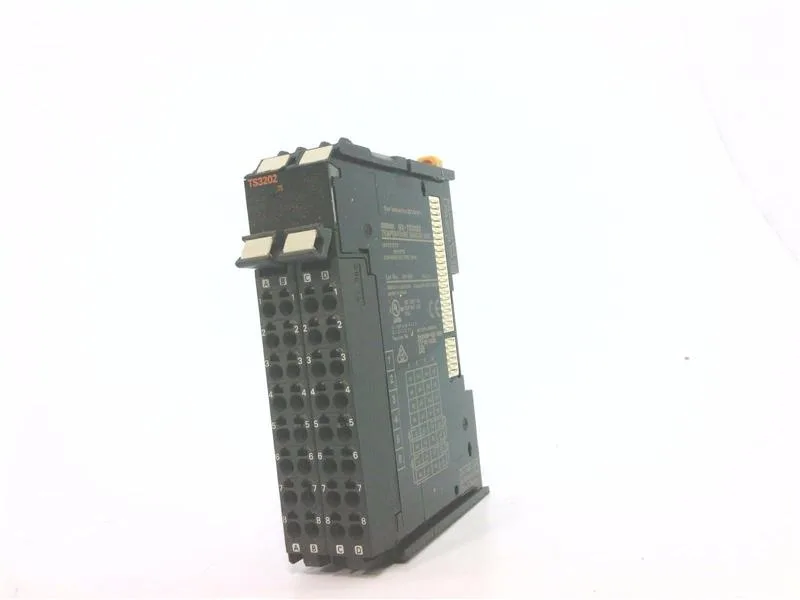

The Omron NX-TS3202 is a Temperature Input Unit (Resistance Thermometer) that accepts 4 RTD inputs and terminates via push-in terminals. It mounts on DIN rail and operates from a 24 VDC supply, designed for integration with NX CPUs and EtherCAT Couplers.
Comparison with NX-TS3204
Within the same NX series, the NX-TS3204 also provides 4 RTD inputs but uses a removable screwless clamping terminal block. The NX-TS3202 uses fixed push-in terminals. Both occupy the same 24 mm module width and connect to the NX bus identically, so mechanical compatibility in a panel slot is the same.
NX-TS3202 mounts on DIN rail, 24 VDC, with push-in terminals. It has 4 RTD inputs with 0.001°C resolution and 60 ms conversion time. Accuracy ranges from ±0.1% to 0.25%.
