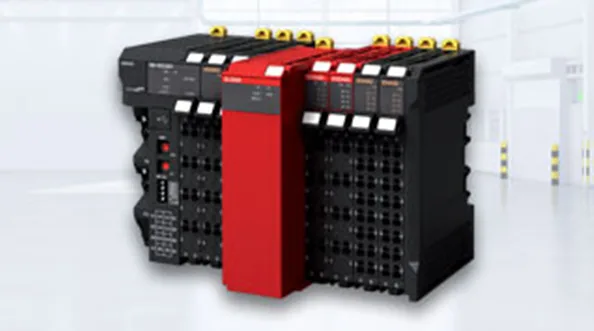

Omron NX-TS3204

Omron NX-TS3204 RTD Input Module, 4 Ch, DIN Rail

MPNNX-TS3204
Active

Omron NX-TS3204, Temp-Input module, 4 RTD inputs, DIN rail mount, 24 mm width, screwless clamping terminals.

$1,269.00 – $1,881.77Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

NX-TS3204 specifications
ParameterValue
TypeTemp-Input
Input typeRTD
Terminal typeScrewless Clamping Terminal Block, removable
NX-PF power supply requiredYes
MountingDIN Rail
DIN modules24mm
Analog inputsPT100 (3-wire)/PT1000/Ni508.4
Accuracy at 25°C±0.1% to 0.25% depending on range
Number of analog inputs4
Resolution (Conversion time)0.001°C resolution, 60ms/unit

Product details

The NX-TS3204: Mounts on DIN rail (24 mm wide) with a removable screwless clamping terminal block. Requires the NX-PF power supply unit.

What sets it apart from the sibling NX-TS3202?

The NX-TS3202 is a functional peer — same 4 RTD inputs, same NX-system fit, DIN-rail mount, and 24 V DC operation. The critical procurement difference is the termination method: the NX-TS3204 uses a screwless clamping terminal block (removable), while the NX-TS3202 uses push-in terminals. A panel wired for the NX-TS3202’s push-in connectors will require re-termination to accept the NX-TS3204 screwless clamping block — not a direct physical swap without touching the wiring.

Production status is active per Omron’s lifecycle classification.

Frequently asked questions

Will the NX-TS3204 drop into a panel originally specified for the NX-TS3202?

Not without rewiring. The NX-TS3204 uses a screwless clamping terminal block, while the NX-TS3202 uses push-in terminals. The mounting and electrical interface are otherwise compatible, but the termination style is different.

Does the NX-TS3204 require a separate power supply?

Yes, the NX-PF power supply module is required to power the NX-TS3204.

MPN
NX-TS3204
