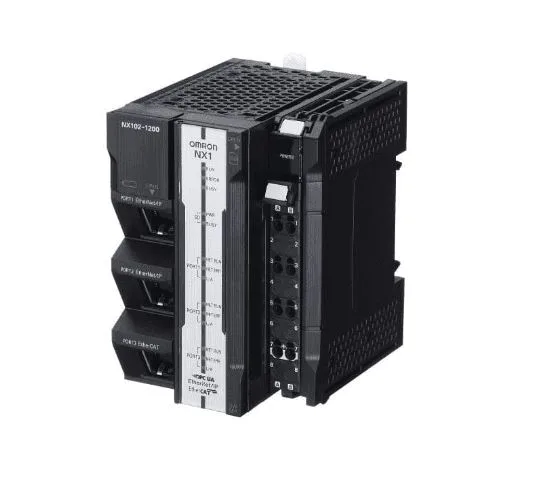

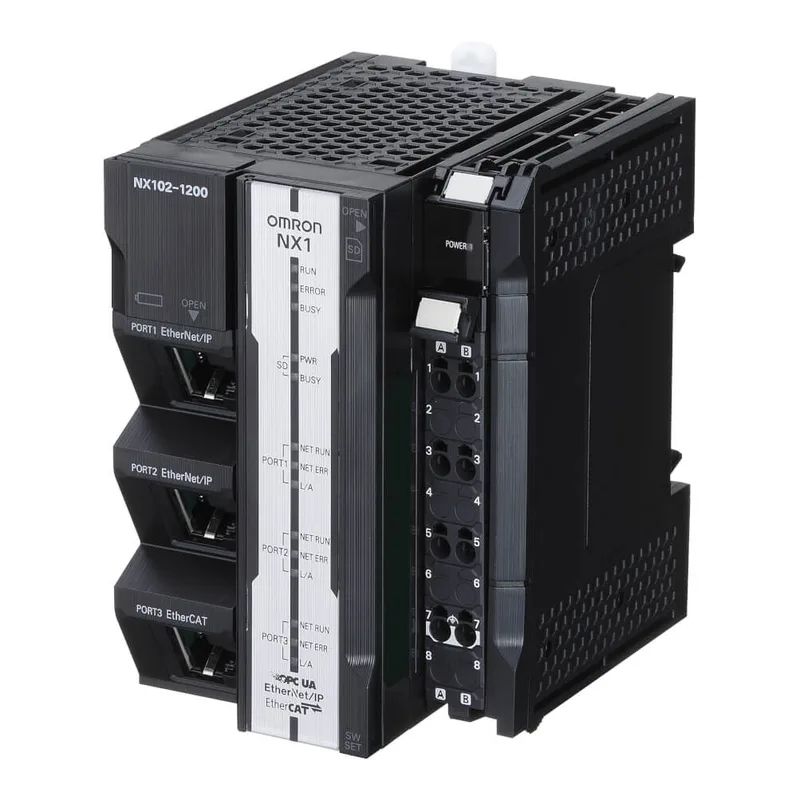

Omron NX102-1200 — PLCs (Programmable Logic Controllers)

Omron NX102-1200 Sysmac NX1 CPU, 8 axes

MPNNX102-1200

Omron Sysmac NX1 modular CPU, NX102-1200, 5 MB program memory, 33.5 MB variables, 8 synchronous axes, 1 ms cycle.

$3,300.35 – $4,469.00Ref. price · indicative, final on quote
Omron NX102-1200 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

NX102-1200 — Specifications
ParameterValue
Product typeSysmac NX1 Modular CPU
Program memory5 MB
Variables memory33.5 MB
Dimensions (L x w x h)10cm x 6.6cm x 10cm
Max. number of PTP axes4
Primary task cycle time1 ms
Controller functionalityMotion control, OPC-UA, Position control, Sequence control
Max. number of synchronous axes8
Max. number of axes (incl. virtual)15

Product details

CPU that pulls motion and logic together

The NX102-1200 runs 8 synchronous real axes and up to 15 total including virtual at a 1 ms primary task cycle. Program memory sits at 5 MB with 33.5 MB for variables, so you keep multi-axis sequences and large data sets on board without extra memory cards. OPC-UA is native, cutting out a separate gateway for SCADA or MES communication.

No, the CP1E won't drop in

The CP1E-E60DR-A-EC is a compact PLC with 60 integrated I/O, relay outputs, and AC power. The NX102-1200 is a modular motion CPU with no onboard I/O, different depth (10 cm vs 7.8 cm for the CP1E body, though the CP1E is deeper overall at 19.5 cm), and a completely different rack architecture. Replacing a CP1E with this unit means a full panel rewire and new I/O configuration — it is not a form-factor swap.

Mounts on the NX1 series backplane. OPC-UA server runs on-board, enabling direct data exchange with higher-level systems without extra hardware.

Frequently asked questions

Can the CP1E-E60DR-A-EC be used as a substitute?

No, the CP1E is a compact PLC with integrated I/O, different power supply, and different form factor. The NX102-1200 is a modular motion CPU requiring an NX1 backplane and separate I/O modules. A direct swap is not possible without redesigning the panel.

Does the NX102-1200 include OPC-UA?

Yes, OPC-UA server functionality is built into the CPU, so it can communicate directly with higher-level systems without a separate gateway.
