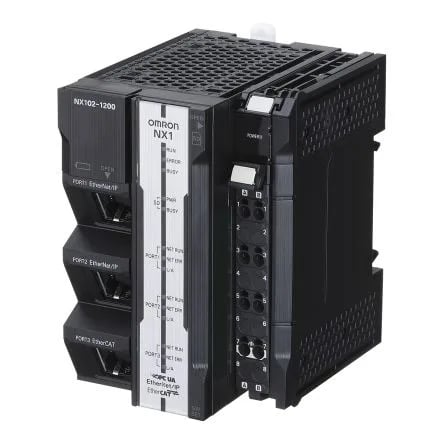

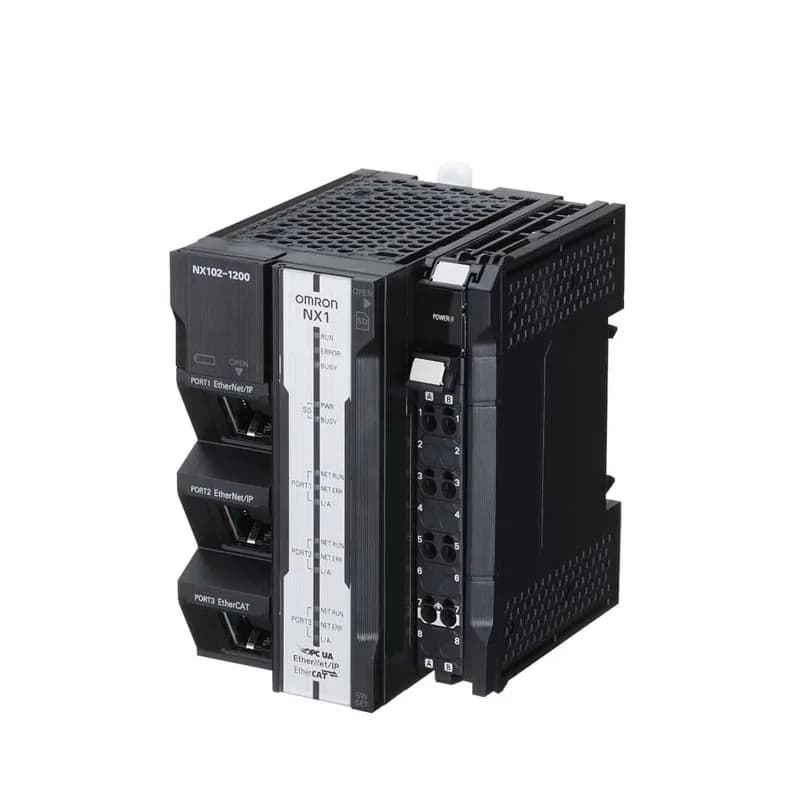

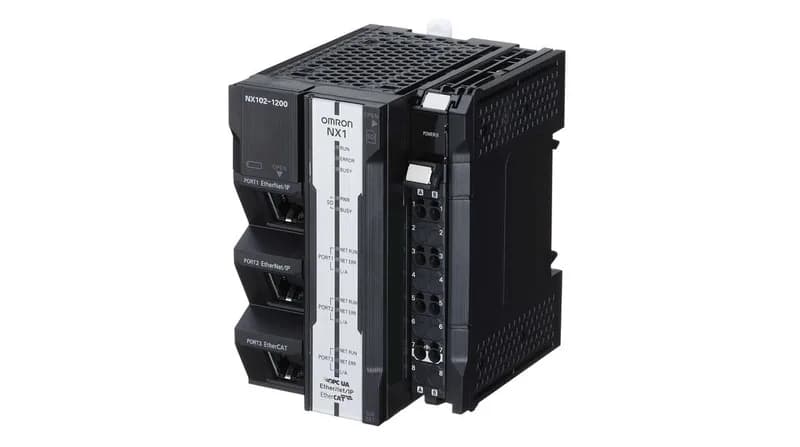

Omron NX102-9000

Omron NX102-9000 CPU Unit, 5 MB, EtherCAT Master, DIN Rail

MPNNX102-9000

Omron NX1 series CPU unit, order code NX102-9000, 5 MB program memory, EtherCAT master, DIN rail mount, active lifecycle.

$1,112.00 – $2,223.00Ref. price · indicative, final on quote
Omron NX102-9000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

NX102-9000 key specifications
ParameterValue
SeriesNX1
Voltage max28.8 V
Voltage min20.4 V
ProtocolEtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB
InterfaceEthernet;EtherCAT;EtherNet / IP;USB
MountingDIN Rail Mount
Terminal_typePush-In Terminal
Dimensions_text10cm x 6.6cm x 10cm
I_o_systemNX I/O Bus
Data_memory32765 words
Baud rate max100 Mbps
Program_memory5 MB

All specifications

NX102-9000 additional specifications
ParameterValue
Program_capacity5 MB
Variables_memory33.5 MB
Expandability_textYes
Has_battery_backupTrue
Has_realtime_clockTrue
Programming_languageLadder Diagram (LD);Structured Text (ST)
Input (Output max. max)64 I/O Points
Controller_functionalityOPC-UA, Position control, Sequence control
Max. number of expansion units max32
Max. number of remote i (O nodes max)64

Product details

CPU Unit with Integrated EtherCAT Master

The Omron NX102-9000 is a Sysmac NX1-series CPU unit with 5 MB of program capacity and integrated EtherCAT master, EtherNet/IP, and USB ports, rated for 20.4 to 28.8 VDC supply. It provides 33.5 MB of variable memory and 32765 words of data memory, with a real-time clock and battery backup for retained data on power loss. The CPU handles up to 64 local I/O points and can expand with up to 32 NX I/O units and 64 remote I/O nodes over the NX bus and EtherCAT network.

I/O and Expansion Capability

Mounts on a DIN rail; push-in terminals simplify wiring and reduce panel assembly time. The controller supports ladder diagram and structured text programming, and includes OPC-UA, position control, and sequence control functionality.

Interchangeability with NX1029000

The NX102-9000 and the alternate listing NX1029000 share identical specs in series, memory, communication interfaces, mounting, and voltage range. A panel designed around the dashless variant accepts this CPU without rewiring or program changes.

Frequently asked questions

What is the closest functional second-source for the NX102-9000?

The part NX1029000 is functionally identical, with the same program memory, I/O count, and communication interfaces. It drops directly into the same panel layout.

What series does the NX102-9000 belong to?

It is part of the Omron NX1 series.

What is the has_mpn of this component?

The manufacturer part number is NX102-9000.
