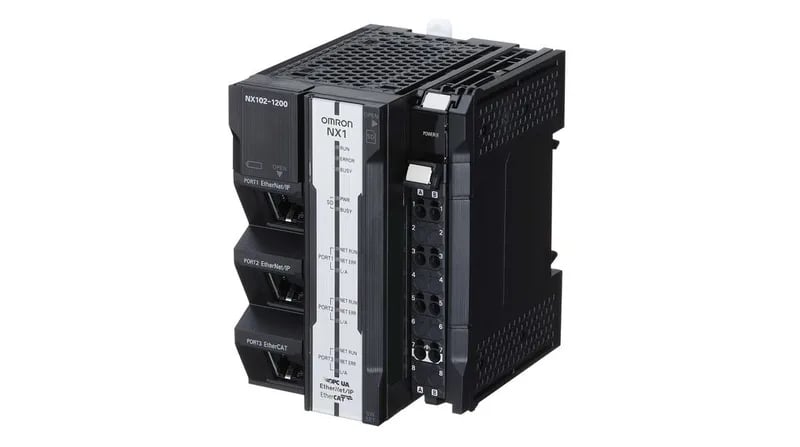

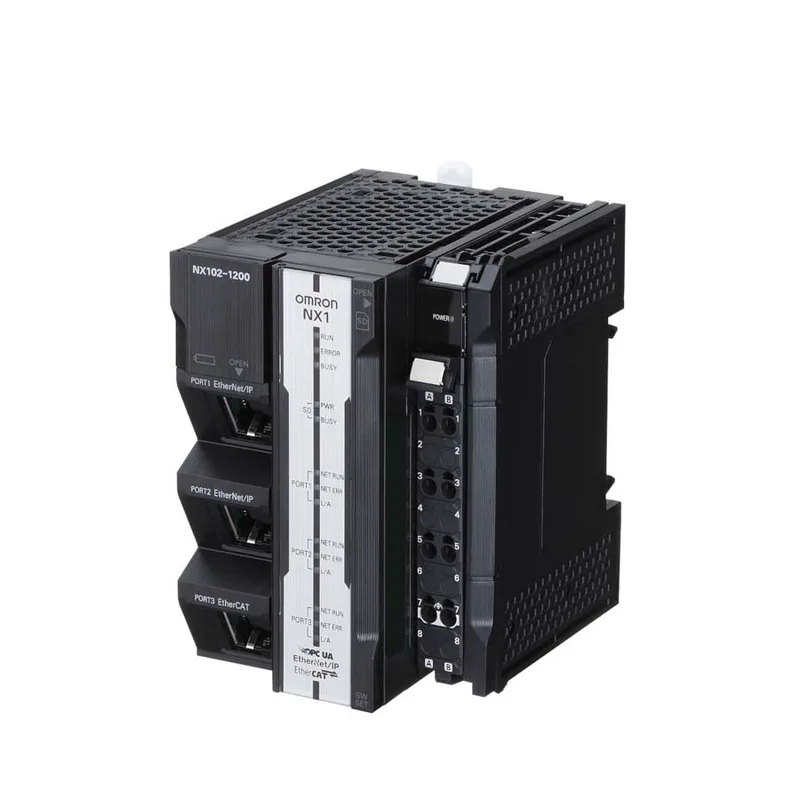

Omron NX1029000

Omron NX1029000 NX1 CPU, 100 Mbps EtherCAT, 5 MB

MPNNX1029000

Omron, NX1 series, modular CPU, NX1029000, 24 V DC, EtherCAT, EtherNet/IP, USB, 5 MB program capacity, 64 I/O.

$1,112.00 – $2,223.00Ref. price · indicative, final on quote
Omron NX1029000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

NX1029000 specifications
ParameterValue
SeriesNX1
MountingDIN Rail Mount
Termination typePush-In Terminal
Communication interface typeEthernet;EtherCAT;EtherNet / IP;USB
Operating voltage max.28.8 V
Operating voltage min.20.4 V
Data memory32765 words
ExpandabilityYes
Battery backupYes
Baud rate max.100 Mbps
Real-Time clockYes
Program capacity5 MB
Input (Output max.)64 I/O Points
Programming language usedLadder Diagram (LD);Structured Text (ST)

Product details

What this CPU brings to your rack

The Omron NX1029000 is a Sysmac NX1 modular CPU running on 24 V DC, with a 5 MB program capacity and 32765 words of data memory. It handles up to 64 local I/O points, expandable via 32 NX units, and communicates over EtherCAT, EtherNet/IP, and USB at 100 Mbps. The built-in OPC-UA server makes it a solid pick for IIoT data extraction without a standalone gateway.

How it stacks against the NX1021220

This CPU mounts on DIN rail only; the peer NX1 CPU supports both DIN rail and panel mount. Data memory is 32765 words here versus 33.5 MB on the peer. Operating voltage range is 20.4–28.8 V DC here, while the peer is fixed at 24 V.

Panel placement and wiring

Snaps onto a DIN rail; terminations are push-in style. Power input range is 20.4–28.8 V DC.

Frequently asked questions

Does the NX1029000 drop into a panel specified for the NX1021220?

Not without confirming the mounting. The NX1029000 is DIN rail mount only, while the NX1021220 also supports panel mount. Data memory and voltage range also differ, so rewiring may be needed.

MPN
NX1029000
