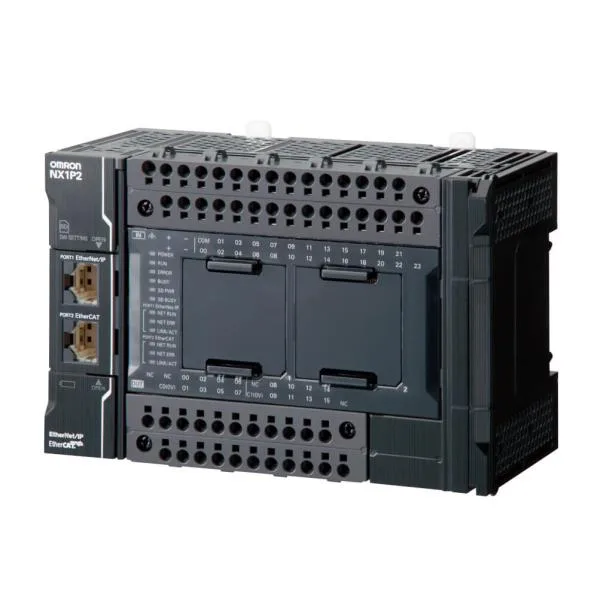

Omron NX1P2-1040DT

Omron NX1P2-1040DT PLC, 24DI/16DO, 24VDC

MPN NX1P2-1040DT
Active

Omron NX1P2-1040DT PLC Controller, 24 Digital Inputs, 16 Solid State Outputs, 24VDC Supply.

$312.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

NX1P2-1040DT specifications
ParameterValue
SeriesNX
Display typeNo Display
Supply voltage24 VDC
ProtocolRJ45, Option Cards Available
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
PackageBox

Product details

The NX1P2-1040DT is an active NX-series PLC from Omron packing 24 digital inputs and 16 solid-state outputs on a 24VDC DIN-rail frame. It runs SYSMAC Studio, handles up to eight expansion modules, and communicates via RJ45 with optional fieldbus cards. No display on this unit — you'll be connecting a laptop for commissioning.

The NX1P2-1040DT provides 24 digital inputs and 16 solid-state outputs on the same 24VDC platform as the NX1P2-9024DT1, which has 14 digital inputs and 10 solid-state outputs.

Mounts on standard DIN rail. Powers from 24VDC. The RJ45 port handles programming and basic Ethernet comms; an option card slot gives you PROFINET, EtherCAT, or serial if the built-in port isn't enough. The 8-slot expansion bus takes remote I/O or specialty modules. Since there's no display, expect to have SYSMAC Studio on a laptop for all diagnostics and commissioning.

MPN
NX1P2-1040DT
