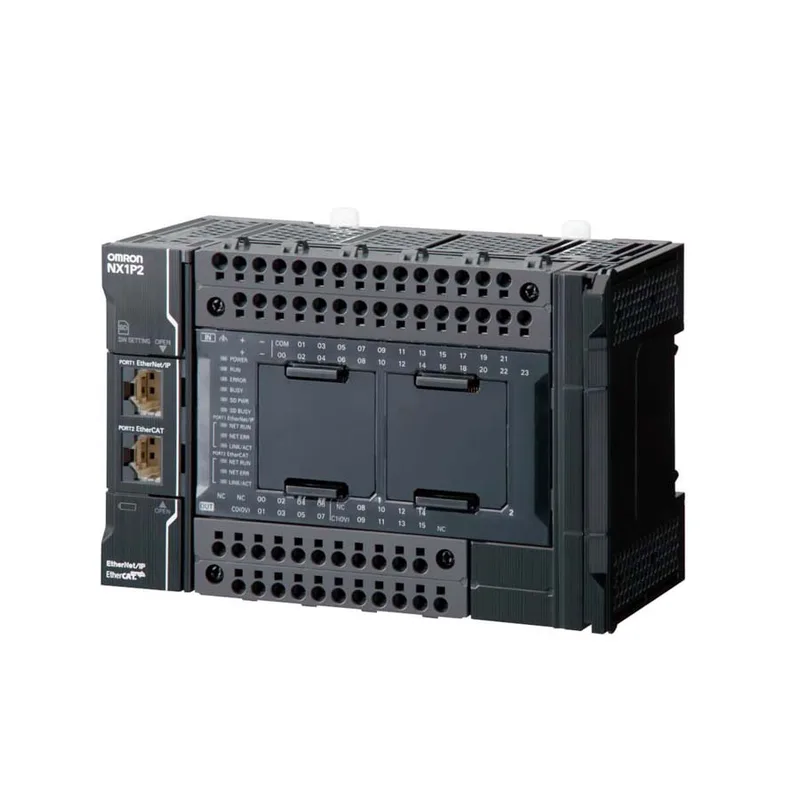

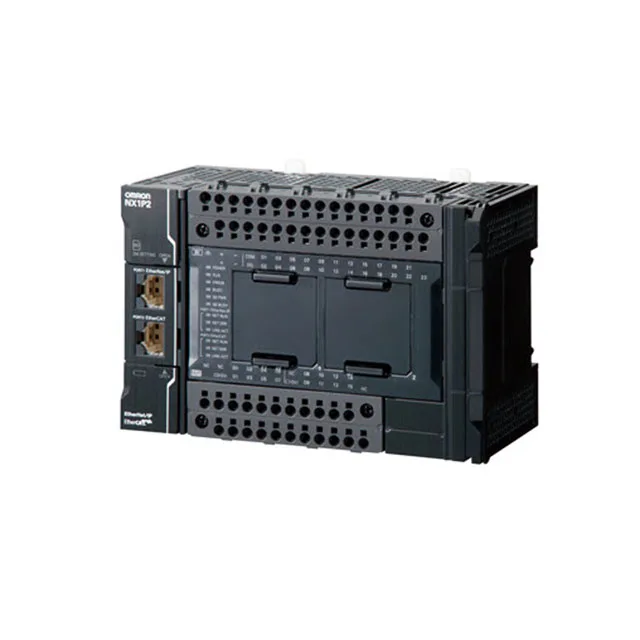

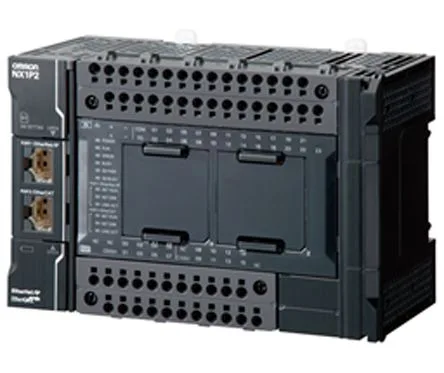

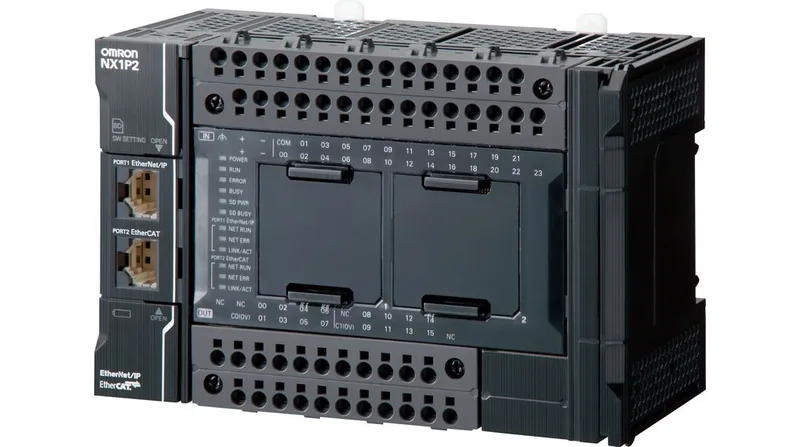

The Omron NX1P2-1040DT1 is a compact NX-series programmable logic controller with 24 digital inputs and 16 solid-state outputs. Programming is via SYSMAC Studio, and communication is over RJ45 with option card slots available.
Omron NX1P2-1040DT1 NX Series PLC, 24 Digital Inputs, 16 Sol
MPNNX1P2-1040DT1
Active
Omron NX1P2-1040DT1, NX Series PLC, 24 Digital Inputs, 16 Solid State Outputs, 24 VDC Supply, DIN Rail Mount.
$654.05Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | NX |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 24 - Digital |
| Outputs (count and type) | 16 - Solid State |
| Expandable | 8 Modules Max |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd |
| Parameter | Value |
|---|---|
| Software | SYSMAC Studio |
| Memory size | 32KB |
| Display type | No Display |
| Communications | RJ45, Option Cards Available |
Product details
Frequently asked questions
What is the series and package type?
The series is NX, and the package is Box.
Will NX1P2-1040DT1 drop into a panel that was specified around CP1L-M40DR-D without rewiring?
No. The NX series is a different platform with a different footprint, mounting (DIN rail only vs DIN or chassis), and software environment. Expect panel re-engineering including mounting holes, wiring terminations, and program migration.
MPN
NX1P2-1040DT1
