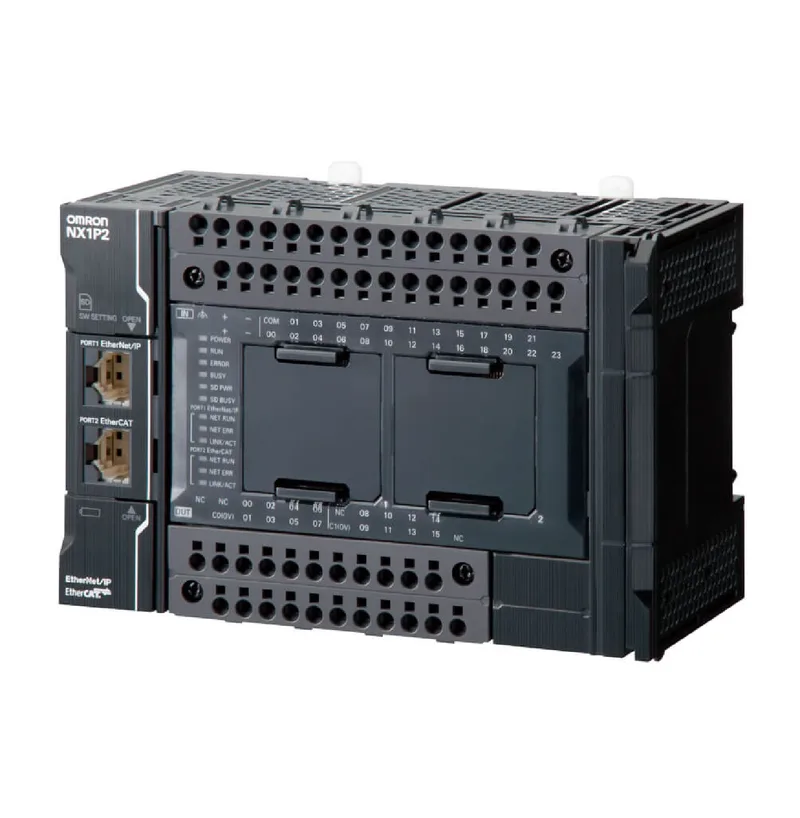

The Omron NX1P2-1140DT is a Machine Controller in the NX1P series, built for small to medium machine automation. It runs on 24 V DC (20.4 to 28.8 V DC per the sibling entry), draws 10 W, and provides 24 inputs and 16 outputs. The power supply terminal on these controllers is rated for 4 A max, and the system accommodates up to 8 connectable I/O or special units.
Physical fit and mounting
The controller measures 100 mm H × 71 mm W × 154 mm D (dimension). It mounts directly on a DIN rail in a standard control panel. The 24 V DC supply is common for machine builders; the 10 W draw leaves headroom on most 24 V power supplies. With 8 connectable units, plan your I/O slice count and leave one slot free for any needed special-function unit. The 4 A supply terminal feeds power to expansion units, so ensure your main power budget covers the aggregate draw of all connected slices.
