Compact PLC for distributed control

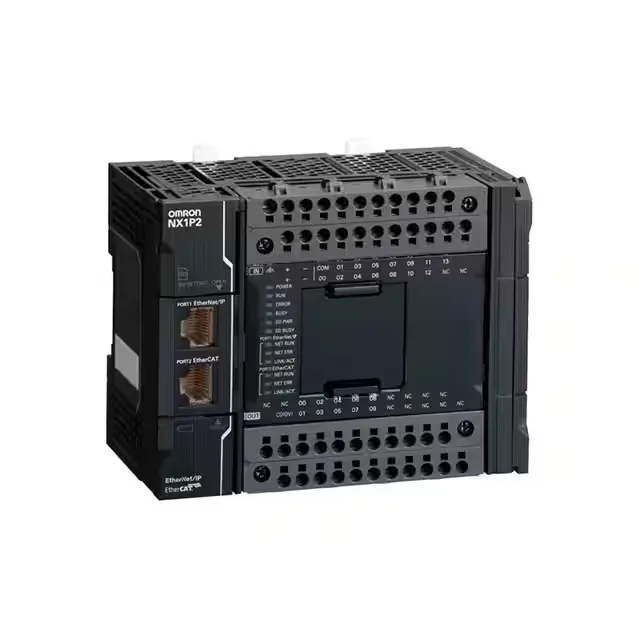

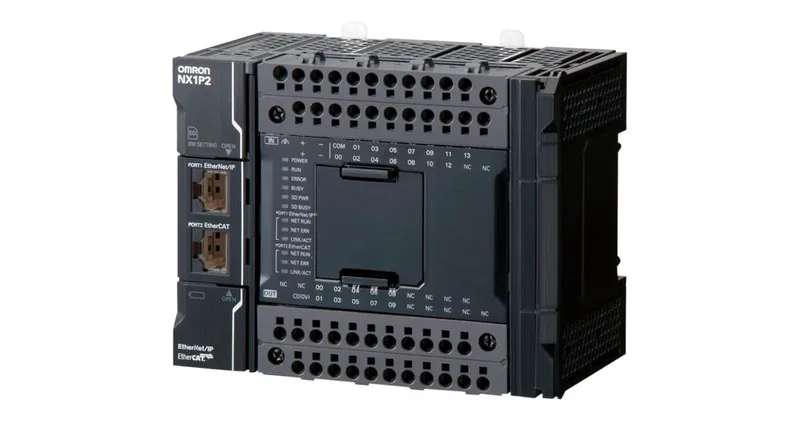

The Omron NX1P2-9024DT is a DIN-rail mounted PLC in the NX series, powered by 24VDC and programmed via SYSMAC Studio. It carries 14 digital inputs and 10 solid-state outputs—enough for a small machine cell or remote I/O island—and can expand up to 8 additional modules for extra I/O, motion, or fieldbus slices. Communications are handled through the onboard RJ45 port plus option cards for protocols like EtherCAT, PROFINET, or serial. Approved for CE, cULus, and Lloyd’s, so it slips into marine or safety-rated panels without a second look at the cert stack.
I/O count is the gate — 14 inputs, 10 outputs, all solid-state
The fixed I/O on the NX1P2-9024DT is 14 digital inputs and 10 digital solid-state outputs. That’s the same count as the sibling NX1P2-9024DT1 — the two appear spec-identical on every field: same series, package, software, memory, expandability, voltage, temp range, and approvals. If you already have a job designed around the -9024DT1, this part drops in without rewiring or re-programming the I/O map. The only difference (if any) isn't captured in the published specs, so treat them as interchangeable for sourcing.
Integration factors: mounting, memory, environment
Mounts on standard DIN rail, no chassis cutout required. Memory is 32 KB of program/data space — enough for a moderate sequence with a few analog blocks, but not a multi-axis motion application. Operating temperature 0°C to 55°C covers most indoor panel environments; no display, so all diagnostics are via the software or optional HMI.
