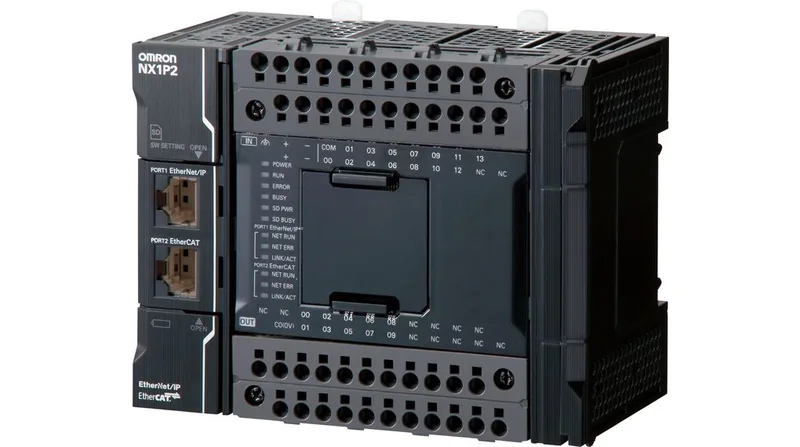

Omron NX series, NX1P2-9024DT1 programmable logic controller, 24 VDC, 14 digital inputs, 10 solid-state outputs, 32 KB memory, expandable up to 8 modules, DIN rail mount.
| Parameter | Value |
|---|---|
| Series | NX |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 14 - Digital |
| Outputs (count and type) | 10 - Solid State |
| Expandable | 8 Modules Max |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd |
| Parameter | Value |
|---|---|
| Software | SYSMAC Studio |
| Memory size | 32KB |
| Display type | No Display |
| Communications | RJ45, Option Cards Available |
The Omron NX1P2-9024DT1 is an active NX series machine controller with 14 digital inputs and 10 solid-state outputs, all at 24 VDC. The unit stores 32 KB of program memory and expands to eight modules via the NX bus. It mounts on DIN rail and runs SYSMAC Studio.
Built-in RJ45 port; option cards expand communication. Expansion bus supports up to 8 NX-series modules.
The NX1P2-9024DT shares the same 14 DI / 10 DO count, 32 KB memory, 24 VDC supply, and 8-module expansion. All key electrical and mechanical ratings match, making it a direct functional equivalent for the same application.
Series is NX; package is Box.
It is approved by CE, cULus, and Lloyd's.
