Analog output slice for NX1

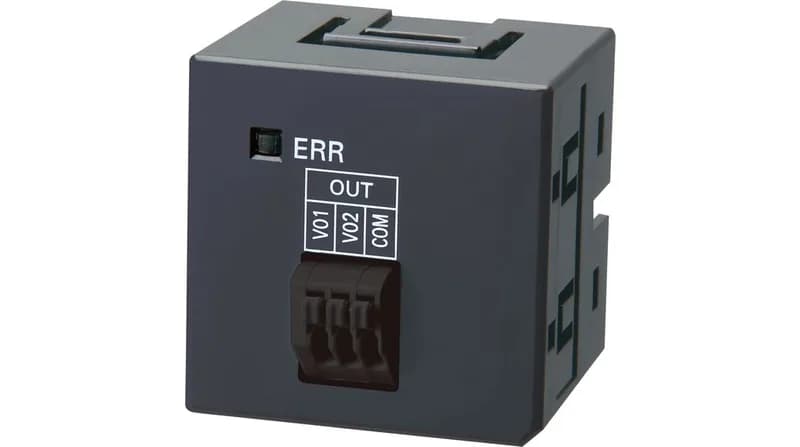

The Omron NX1W-DAB21V is an analogue output module designed for the Sysmac NX Series PLCs. It occupies one standard NX position on the backplane and handles the conversion of digital setpoints from the NX1 CPU into analog signals for field devices. No fieldbus pass-through on this module – its outputs are local to the CPU.
Mechanical footprint is 36 mm wide, 36 mm high, and 28 mm deep – matches the standard NX slice pitch, so it aligns with adjacent I/O modules. Termination is via plug connectors, reducing panel wiring time. Operating ambient 0 to 55 °C; keep the enclosure ventilated if clustered with heat-dissipating slices.
