128-axis synchronous motion at 0.125 ms

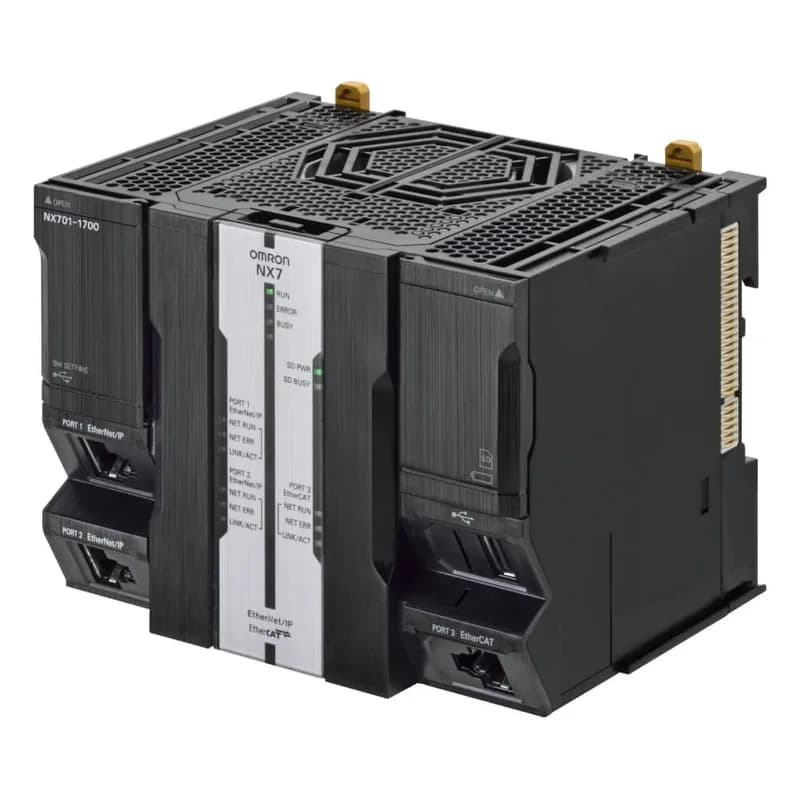

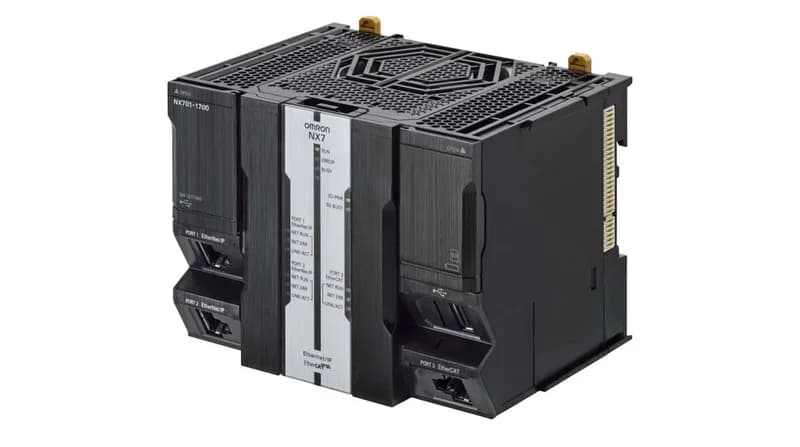

The Omron NX7011620 NX7-series motion controller handles up to 128 synchronous axes (including virtual) with a primary task cycle time of 0.125 ms — the spec that decides whether a high-speed packaging or printing machine can run without interpolation lag. The 1 Gbps EtherCAT master port sustains that cycle across all axes, so you don't trade axis count for speed.
Triple-protocol networking
Built-in EtherCAT, EtherNet/IP, and Ethernet TCP/IP ports let the NX7011620 act as both a motion master and a plant-floor data node — no separate gateway needed for OPC-UA or database connections.
Memory and program capacity
With 80 MB program memory and 256 MB data memory (plus 260 MB variable memory), the NX7011620 holds large ladder/structured-text programs and extensive recipe or logging data without external storage.
Active lifecycle and standard availability
The NX7011620 carries an Active lifecycle status with standard demand — no end-of-life risk for new machine designs, and consistent supply for production builds.
