Omron NXRS1201

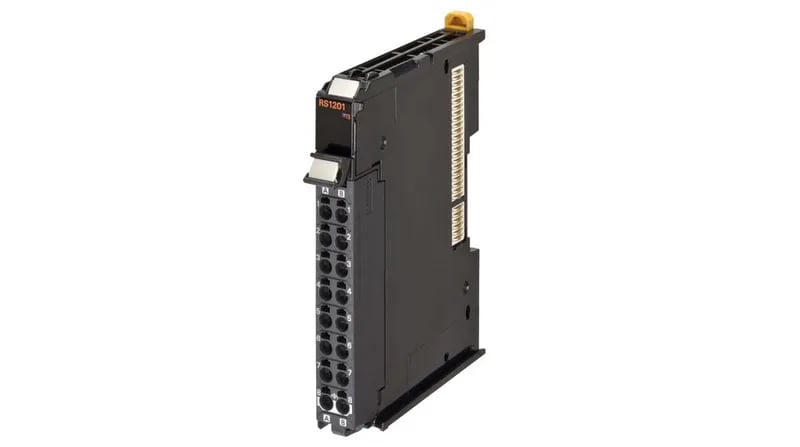

Omron NXRS1201 Load Cell Input Module, 1-Ch 24-Bit

MPNNXRS1201

Omron NX Series, Load Cell Input Module, 1 Channel, 24-bit, ±5 mV/V, 0.01% accuracy, DIN Rail, Screwless Clamping Terminal Block, IP20.

$343.03 – $780.33Ref. price · indicative, final on quote
Omron NXRS1201 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

NXRS1201 key specifications
ParameterValue
Type of moduleLoad cell
I o connection typePush-in
MountingDIN Rail
Terminal_typeScrewless Clamping Terminal Block, removable
External_connection_terminalsScrewless clamping terminal block (16 terminals)
Dimensions_text12 × 100 × 71 mm (W×H×D)
Poweryes
IP ratingIP20
Gain_drift±10 ppm/°C
I_o_systemNX I/O Bus
Zero_drift±0.1 µV/°C RTI
I/O channels1

All specifications

NXRS1201 additional specifications
ParameterValue
Module_typeInput Module
Accuracy0.01
Nonlinearity±0.01% (full scale) *2
Warm_up_period30 minutes
Voltage5
Number of points1
Conversion_cycle125μs
Input_range_text{'max': 5, 'min': -5, 'unit': 'mV/V'}
Signal_processingFree running, Synchronous
Conversion time0.125
Display_resolution24 bits
Input_circuit_typeDifferential
I o refreshing methodFree-Run refreshingSynchronous I/O refreshingTask period prioritized refreshing
Input_conversion_range{'max': 5.5, 'min': 5.5, 'unit': 'mV/V'}
Gain_point_adjustment_range{'max': 5, 'min': 5, 'unit': 'mV/V'}
Zero_point_adjustment_range{'max': 5, 'min': 5, 'unit': 'mV/V'}

Product details

The NXRS1201: The module fits a 12 mm DIN-rail footprint with a removable screwless push-in terminal block (16 terminals). Conversion cycle runs at 125 µs per sample, configurable for free-running, synchronous, or task-period-prioritized refresh.

24-bit resolution on a ±5 mV/V input range. The differential input circuit rejects common-mode noise from long cable runs; with a ±0.1 µV/°C RTI zero drift, long-term stability holds without frequent tare recalibration.

Integration note

Mounts on a DIN rail; width 12 mm leaves room for adjacent NX slices. The removable screwless terminal block has 16 terminals and pulls out without depopulating the rail. Requires an NX-PF power supply unit on the bus; the module itself draws backplane power only (no external 24 V needed). IP20 enclosure suits clean indoor panels. After mounting, allow a 30-minute warm-up before taking critical readings; the rated drift specifications assume thermal equilibrium.

Frequently asked questions

What is the alternate order code for the NXRS1201?

The NXRS1201 is also listed under the code NX-RS1201. Both refer to the same load cell input module.

Can the NXRS1201 replace an NX-RS1201 in an existing panel without rewiring?

Yes, they are the same module; the NX-RS1201 is simply an alternate MPN. No rewiring or configuration changes are needed.

MPN
NXRS1201
