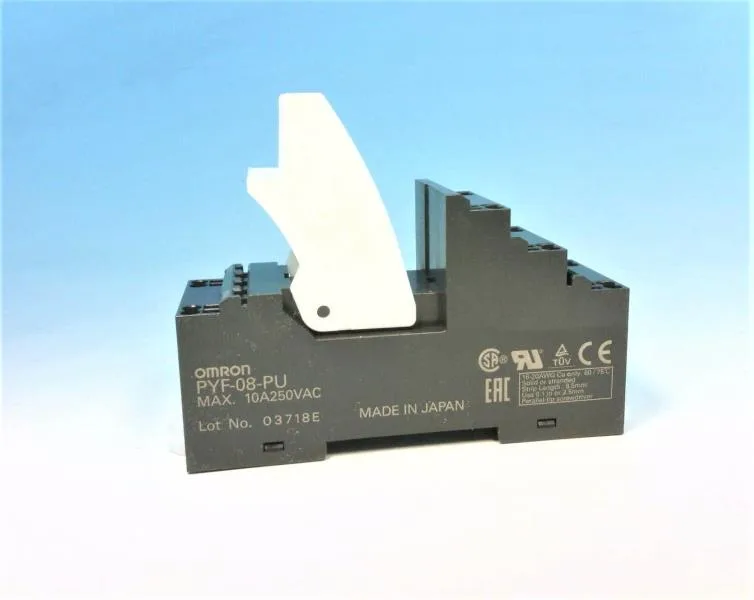

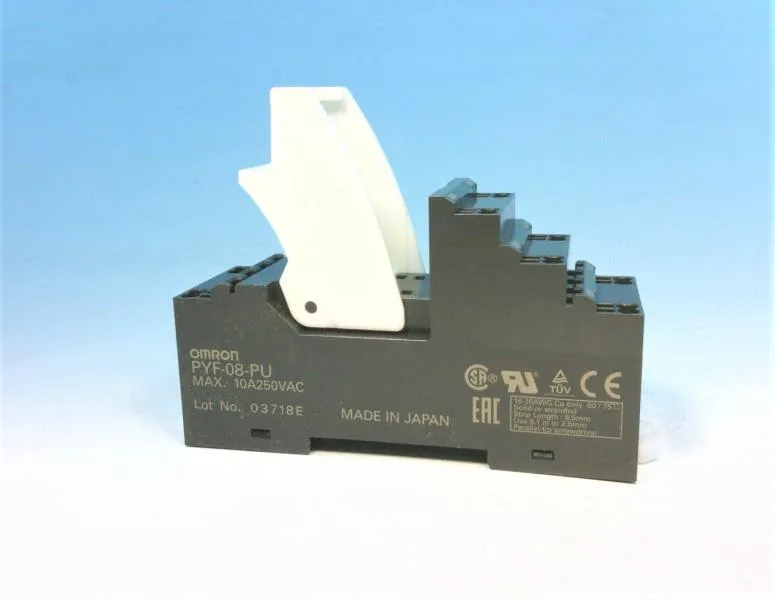

OMRON PYF-08-PU relay socket, 8-pin, 10 A rating, push-in connection, black, 67.5 mm depth x 31 mm width x 90 mm height.
| Parameter | Value |
|---|---|
| Width | 31 mm |
| Height | 90 mm |
| Depth | 67.5 mm |
| Parameter | Value |
|---|---|
| Color | Black |
| Current rating | 10 A |
| Pin count | 8 |
| Electrical connection type | Push-In |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -40 °C |
The OMRON PYF-08-PU is an 8-pin relay socket rated for 10 A, using push-in terminals for fast wiring. The black housing and compact dimensions (67.5 mm deep, 31 mm wide, 90 mm tall) fit standard DIN-rail or panel layouts.
The 10 A rating covers the coil and contact load for most 8-pin ice-cube relays; verify the relay's coil draw stays under that limit when multiple contacts are switched.
The PYF-08-PU is black.
The PYF-08-PU has a depth of 67.5 mm.
