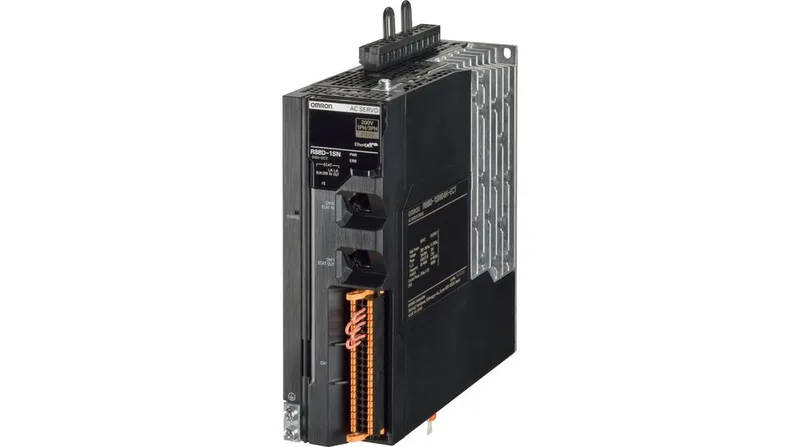

Omron R88D1SN04HECT
MPNR88D1SN04HECT
R88D 1SN04H-ECT- - Module: servo drive; 400W; 230VAC; R88D; EtherCAT Specifications Servo control method EtherCAT Drive supply voltage 230 V single phase Rated output 0.4 kW Product Height (unpacked) 223 mm Product Width (unpacked) 55 mm Product Depth (unpacked) 196.05 mm Product Weight (unpacked) 1500 g
$270.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Width | 55 m |
| Height | 180 mm |
| Length | 185 mm |
| Series | 1S |
| Rated power | 400 W |
| Suitable for | R88M-1M40030(H/T) |
| Current | 4.6 A |
| IP rating | IP20 |
| Operating temperature max. | 55 °C |
| Operating temperature min. | 0 °C |
| Operating voltage max. - AC | 252 V |
| Operating voltage min. - AC | 170 V |
MPN
R88D1SN04HECT
