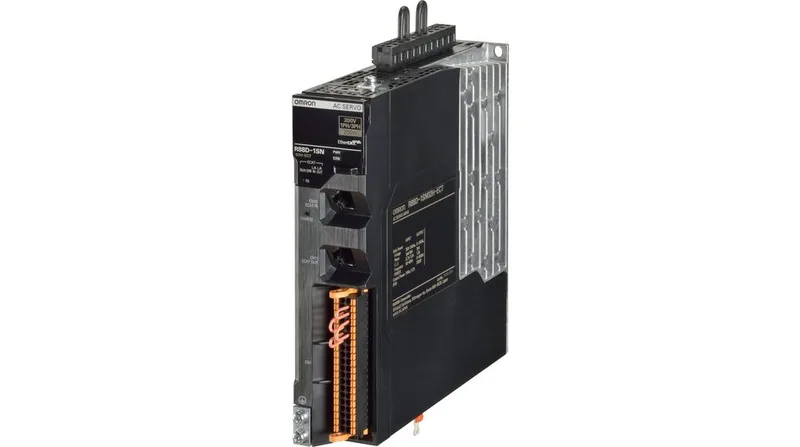

Omron R88D1SN01HECT
MPNR88D1SN01HECT
R88D 1SN01H-ECT- 1S SERVO DRIVE, ETHERCAT TYPE, 100 W, 1~ 230 VAC Specifications Servo control method EtherCAT Drive supply voltage 230 V single phase Rated output 0.1 kW Product Height (unpacked) 223 mm Product Width (unpacked) 40 mm Product Depth (unpacked) 196.05 mm Product Weight (unpacked) 1200 g
$270.18Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | 1S |
Mechanical
| Parameter | Value |
|---|---|
| Length | 185 mm |
Other specifications
| Parameter | Value |
|---|---|
| Width | 40 mm |
| Height | 180 mm |
| Rated power | 100 W |
| Suitable for | R88M-1M05030T;R88M-1M10030(H/T) |
| Current | 1.8 A |
| IP rating | IP20 |
| Operating temperature max. | 55 °C |
| Operating temperature min. | 0 °C |
| Operating voltage max. - AC | 252 V |
| Operating voltage min. - AC | 170 V |
MPN
R88D1SN01HECT
