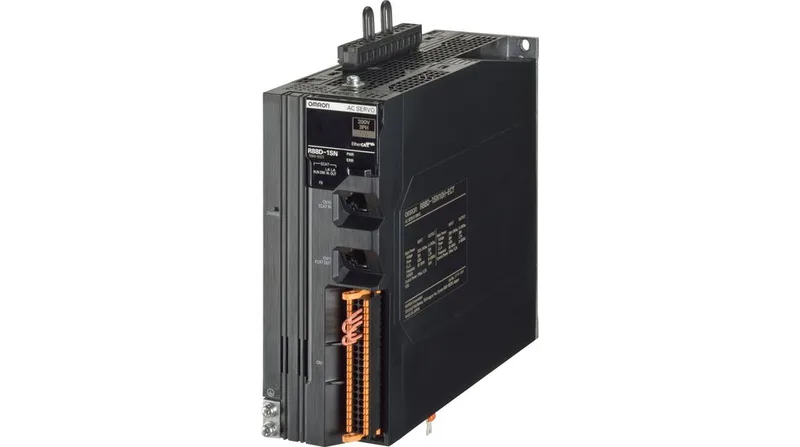

R88D1SN08HECT - Omron
MPNR88D1SN08HECT
R88D 1SN08H-ECT-Module: servo drive; 800W; 230VAC; R88D; EtherCAT Specifications Servo control method EtherCAT Drive supply voltage 230 V single phase Rated output 0.75 kW Product Height (unpacked) 226.5 mm Product Width (unpacked) 65 mm Product Depth (unpacked) 226.05 mm Product Weight (unpacked) 2000 g
$270.18Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Width | 65 mm |
| Height | 180 mm |
| Length | 215 mm |
| Series | 1S |
| Rated power | 750 W |
| Suitable for | R88M-1M75030(H/T) |
| Current | 7.3 A |
| IP rating | IP20 |
| Operating temperature max. | 55 °C |
| Operating temperature min. | 0 °C |
| Operating voltage max. - AC | 252 V |
| Operating voltage min. - AC | 170 V |
MPN
R88D1SN08HECT
