Omron R88DKN04HECT

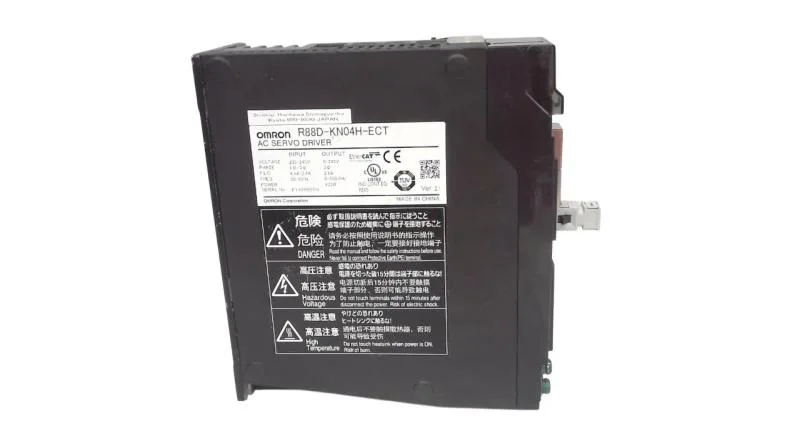

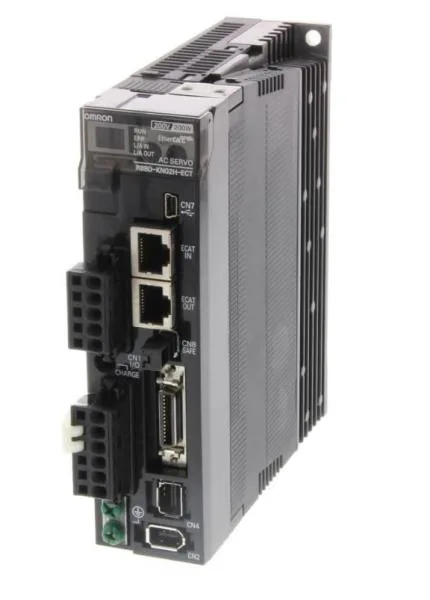

Omron R88DKN04HECT Servo Drive, 400W 4.1A, EOL

MPN R88DKN04HECT
End of Life

Omron R88D series servo drive, 400 W rated power, 4.1 A rated current, 170–264 VAC input, IP10, 55 mm width.

$1,193.36 – $1,832.54 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

R88DKN04HECT specifications
ParameterValue
SeriesR88D
Current4.1 A
Power400 W
IP ratingIP10
Width55 mm
Height150 mm
Length132 mm

Product details

Rated 400 W output power and 4.1 A continuous current — this drive is sized for a small servo motor in a positioning axis, not a multi-kilowatt spindle. The 170–264 VAC single-phase input range covers standard 200–240 VAC industrial mains, but does not accept 400 V three-phase. No washdown or outdoor deployment. The 55 mm width, 150 mm height, and 132 mm depth footprint fits a standard DIN-rail or backplate layout. The 0 to 55 °C operating range is typical for ventilated cabinets; derate or forced airflow is needed above 40 °C ambient.

Deployment context

This servo drive mounts inside a control panel — the IP10 rating and compact 55 mm width suit a DIN-rail or backplate arrangement alongside a motion controller and power supply. The 400 W output drives a small rotary or linear servo motor in pick-and-place, labeling, or light assembly stations.

MPN
R88DKN04HECT
