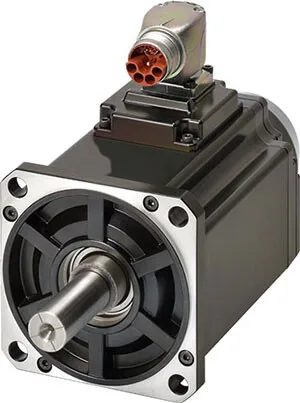

The Omron R88M-1AM75030T-S2 is a 750 W servo motor from the 1SA Series, rated for 3000 RPM continuous speed on a 240 VAC single- or three-phase supply. It carries an absolute encoder for position feedback — no homing sequence at power-up, which simplifies commissioning on indexing or pick-and-place axes. The cylindrical body and key-and-tap shaft interface suit direct coupling to ball screws or timing-belt pulleys. No internal brake means the load must be held by the drive's holding torque or an external brake when power is off.
Integration notes
The 1SA Series integrates functional safety into the servo lineup, so the motor works with compatible Omron drives (G5-series or similar) that support safe torque off and safe stop. The absolute encoder requires a battery-backed multi-turn memory or a single-turn configuration depending on the drive setup. The keyed shaft lets you index the load without a coupling clamp; verify the tap depth matches your pulley or coupling set-screw length. No oil-tight seal — avoid direct coolant spray on the shaft seal in washdown zones.
