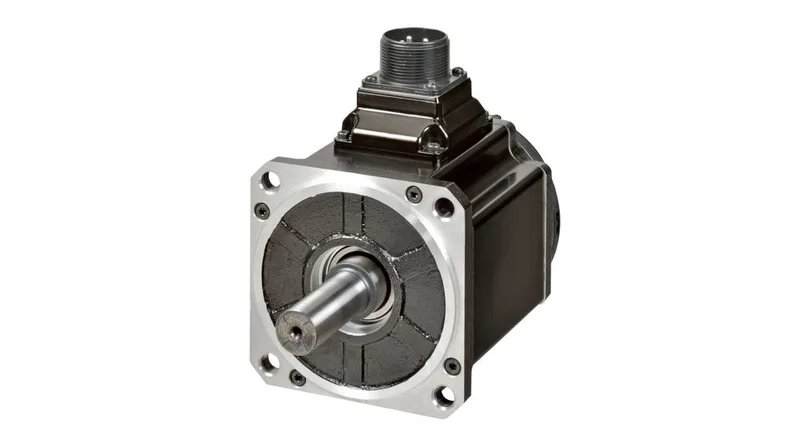

The Omron R88M1L1K030HBS2 is a 1S-series servo motor delivering 3.18 Nm continuous torque at 3000 min⁻¹ output speed, drawing 5.2 A rated current. It operates on a 170–264 VAC supply, which covers standard single-phase and three-phase line inputs through a servo drive. The 3.18 Nm rating matches it to moderate inertial loads — indexing tables, pick-and-place axes, or conveyor segments — where the torque curve stays flat across the speed range.
Frame fit and panel integration
The motor body measures 168 mm wide × 100 mm high × 100 mm deep. That 100 mm square flange is the standard 1S frame size for this torque class, so it bolts directly to the same mounting pattern as other 1S motors at this rating. The 168 mm width is the overall envelope including the connector housing — account for cable bend radius when laying out the cabinet gland plate.
