Omron R88M1L1K530CS2

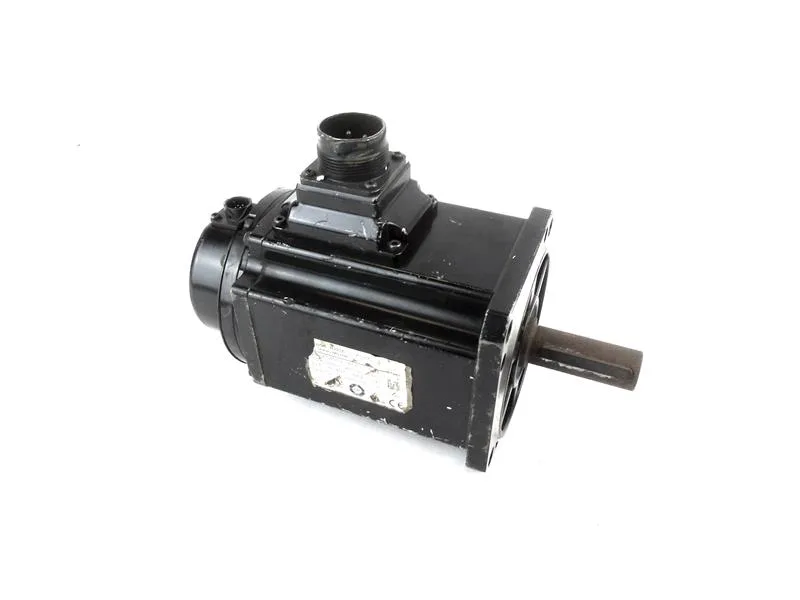

Omron R88M1L1K530CS2 Servo Motor, 4.77 Nm, 3000 min-1

MPN R88M1L1K530CS2

Omron 1S series servo motor, R88M1L1K530CS2, 4.77 Nm torque, 3000 min-1 output speed, 4.5 A rated current, 323–528 V operating voltage.

$1,120.39 – $2,325.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

R88M1L1K530CS2 specifications
ParameterValue
Series1 S
Current4.5 A
Width168 mm
Height100 mm
Length100 mm
Torque4.77 Nm

Product details

What this servo motor delivers

The Omron R88M1L1K530CS2 is a 1S-series servo motor rated for 4.77 Nm continuous torque at 3000 min-1 output speed, drawing 4.5 A at its rated load. The operating voltage window spans 323 V to 528 V, so it handles standard 400 V-class three-phase lines with headroom for nominal fluctuations. That torque figure puts it in the mid-range of the 1S family — enough for indexing tables, pick-and-place axes, and light conveyor drives where you need controlled acceleration without oversizing the motor frame.

The motor body measures 168 mm wide by 100 mm high by 100 mm deep. That 168 mm width is the flange dimension — it determines the bolt pattern on the mounting plate or gearbox adapter. If you're retrofitting into an existing machine footprint, check that the pilot diameter and bolt circle match your current mount; the 100 mm square body depth leaves clearance for the rear encoder connector and cable bend radius.
