Motor ratings and what they mean for fit

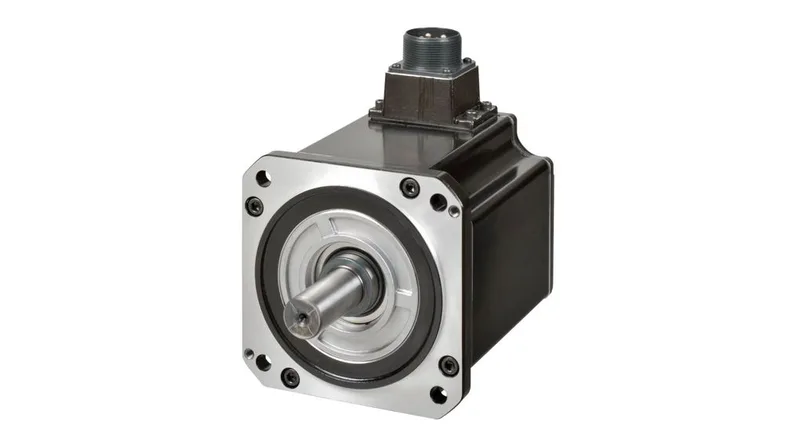

The Omron R88M1L3K030CS2 is a 1S Series servo motor delivering 9.55 Nm continuous torque at 3000 min⁻¹ rated speed, drawing 8.7 A under load. That torque figure is the one that governs sizing for direct-drive or geared applications — match it to the load's required breakaway and running torque, not the peak. The 3000 min⁻¹ base speed suits most common ball-screw and belt-drive axes; if the application needs constant-torque operation below that, confirm the drive's current loop can sustain 8.7 A at lower speeds.
Voltage range and drive compatibility
Operating voltage range is 323–528 VAC, covering 400 VAC and 480 VAC three-phase supplies common in industrial panels. The wide band means it works on both 400 V nominal lines (typical in Europe/Asia) and 480 V systems (North America) without a transformer — but the drive's DC-bus voltage must stay within that window. Frame dimensions are 184 mm wide, 130 mm high, and 130 mm deep — a compact footprint that fits standard servo-mounting flanges.
