Omron R88M1L5K030CS2

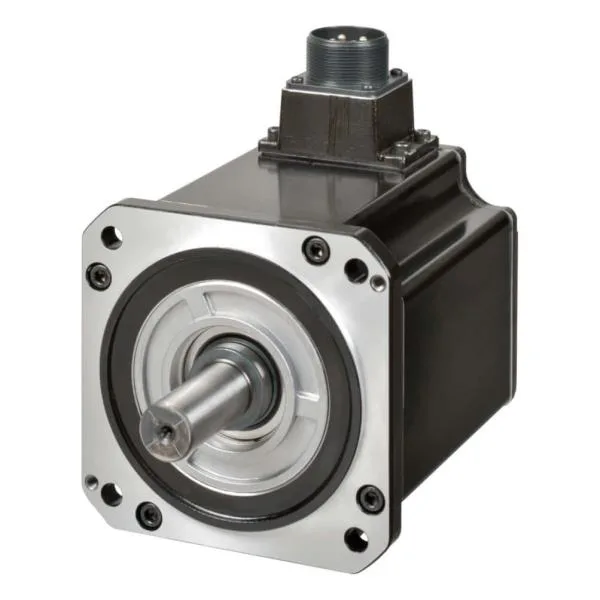

Omron R88M1L5K030CS2 1S Servo Motor, 15.9 Nm, 3000 min⁻¹

MPN R88M1L5K030CS2

Omron 1S series servo motor, R88M1L5K030CS2, 15.9 Nm, 3000 min⁻¹, 13.6 A, 323-528 VAC.

$2,395.09 – $4,397.85 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

R88M1L5K030CS2 specifications
ParameterValue
Series1 S
Current13.6 A
Width232 mm
Height130 mm
Length130 mm
Torque15.9 Nm

Product details

The Omron R88M1L5K030CS2 is a 1S-series servo motor delivering 15.9 Nm of rated torque at 3000 min⁻¹, drawing 13.6 A from a 323-528 VAC supply. That torque figure tells you it handles moderate-to-high inertia loads — indexing tables, ball-screw axes, or conveyor sections requiring sustained force through the speed range. The 3000 min⁻¹ output speed matches the common base speed for direct-drive or 1:1 belted applications; if your axis needs higher traverse rates, you'll gear up from here. The wide voltage input (323-528 VAC) covers 400 VAC three-phase networks across Europe and Asia, and 480 VAC systems common in North America — one motor variant for both, no need to derate or swap for line voltage differences.

Frame size and integration

The motor measures 232 mm wide by 130 mm high by 130 mm deep. That 232 mm width is the flange-to-rear dimension — the mounting face is the 130 mm square. Plan for a mating pilot diameter and bolt pattern that matches the 1S frame standard; the motor mounts directly to the machine frame or gearbox flange without an adapter plate.
