Omron R88M1M5K515CS2

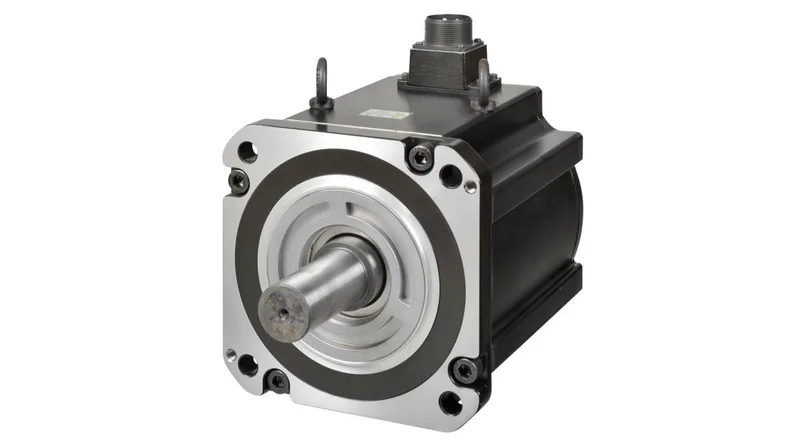

Omron R88M1M5K515CS2 Servo Motor, 35 Nm, 1500 min-1, 14 A

MPN R88M1M5K515CS2

Omron 1S series servo motor, 35 Nm, 1500 min-1, 14 A, 323-528 VAC, 248 x 180 x 180 mm.

$2,874.61 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

R88M1M5K515CS2 specifications
ParameterValue
Series1 S
Current14 A
Width248 mm
Height180 mm
Length180 mm
Torque35 Nm

Product details

The Omron R88M1M5K515CS2 is a 1S series servo motor delivering 35 Nm of rated torque at 1500 min-1 output speed, drawing 14 A under load. It operates across a 323 V to 528 VAC supply range — wide enough to handle 400 VAC three-phase with headroom for line sags or 480 VAC distribution without a step-down transformer.

Mounting and fit

The frame measures 248 mm wide by 180 mm high by 180 mm deep. That footprint matches the 1S-series medium-torque frame size; verify the existing mounting plate or machine interface accepts the 248 mm width before committing the BOM line.

MPN
R88M1M5K515CS2
