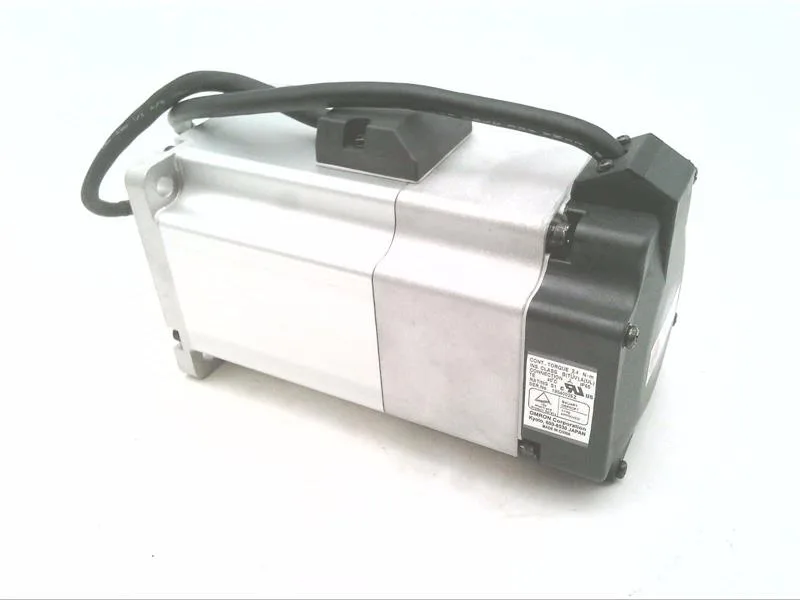

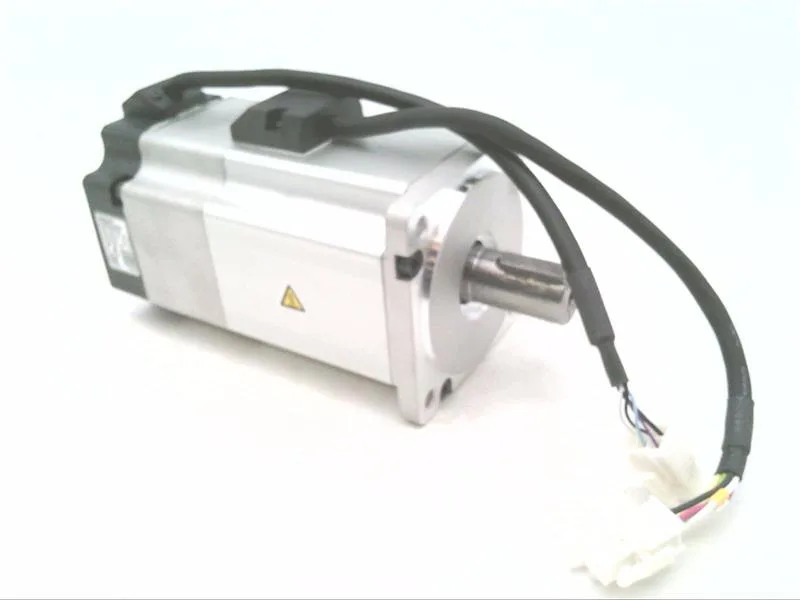

The Omron R88MG75030HBS2 is a G-series servo motor delivering 2.4 Nm continuous torque at 3000 min-1, drawing 4 A rated current. Operating voltage range is 170–264 VAC. Dimensions are 149 mm wide, 80 mm high, 80 mm deep.
What the ratings mean for fit
2.4 Nm at 3000 min-1 places this motor in the medium-torque, medium-speed band — suitable for indexing tables, pick-and-place axes, or conveyor drives where the load inertia is moderate. The 4 A rated current is the continuous thermal limit at the motor's winding; drive sizing should account for peak current during acceleration. The 170–264 VAC input range covers standard three-phase 200 V class and 240 V single-phase supplies, but not 400 VAC lines.
Integration notes
The 149 mm width is the widest dimension — panel cutout or mounting bracket must clear that. Height and depth are both 80 mm, so the motor fits a compact footprint. No IP rating is listed; assume open-frame (IP00) unless a separate encoder or connector cover is specified. For washdown or dust environments, an IP-rated enclosure or boot is required.
