Omron R88MK1K030FS2

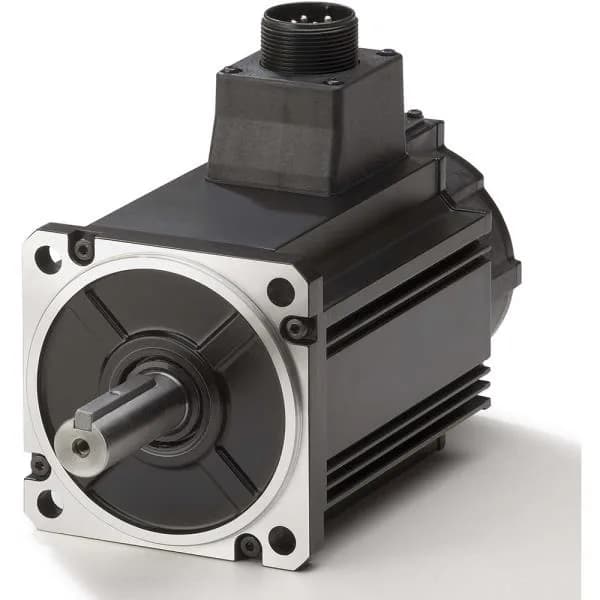

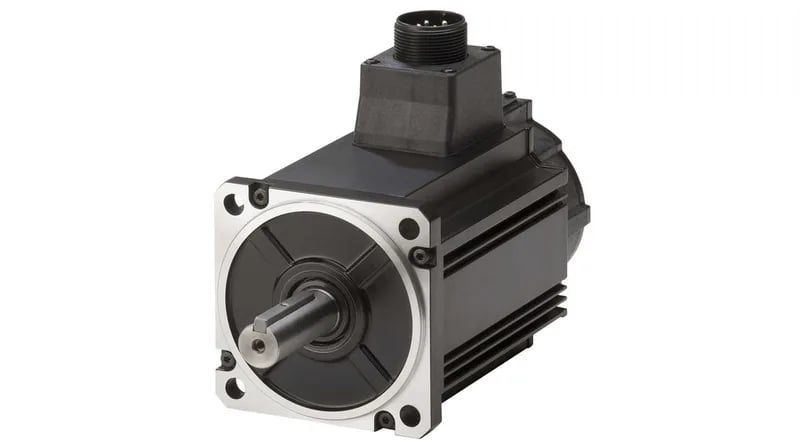

Omron R88MK1K030FS2 Servo Motor, G5, 3.18 Nm, 3000 rpm

MPN R88MK1K030FS2
End of Life

Omron G5 series servo motor, 3.18 Nm, 3000 min-1, 3.3 A, 141 × 100 × 100 mm, R88MK1K030FS2.

$967.74 – $1,847.39 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

R88MK1K030FS2 specifications
ParameterValue
SeriesG5
Current3.3 A
Width141 mm
Height100 mm
Length100 mm
Torque3.18 Nm

Product details

Headline duty: 3.18 Nm at 3000 min-1

The R88MK1K030FS2 is an Omron G5-series servo motor rated 3.18 Nm continuous torque at 3000 min-1 output speed, drawing 3.3 A — sized for mid-range point-to-point axes, small indexing tables, and feed/transfer drives on packaging and assembly cells where a 1 kW-class rotor is the right fit. The DC bus window of 323 V minimum to 528 V maximum pairs it with the matching G5 drive amplifier running on a 230/400 V class supply — confirm the drive firmware build accepts this frame on retrofit before lock-out.

Mechanical envelope and panel fit

Footprint is 141 mm wide × 100 mm long × 100 mm high — a square-face frame with the cable entry on the driven end. The 100 mm stack length is the dimension that gates concentric-shaft and brake-cable clearance when retrofitting into an existing gearbox bell-housing.

Lifecycle read and the sourcing line

The part carries an EOL/HOT lifecycle flag — the line is being wound down, not in fresh production. Spare-parts and like-for-like replacement demand drives what independent stock is still moving through the channel, with lot-specific availability confirmed at RFQ rather than carried as standing inventory.

MPN
R88MK1K030FS2
