What this motor delivers

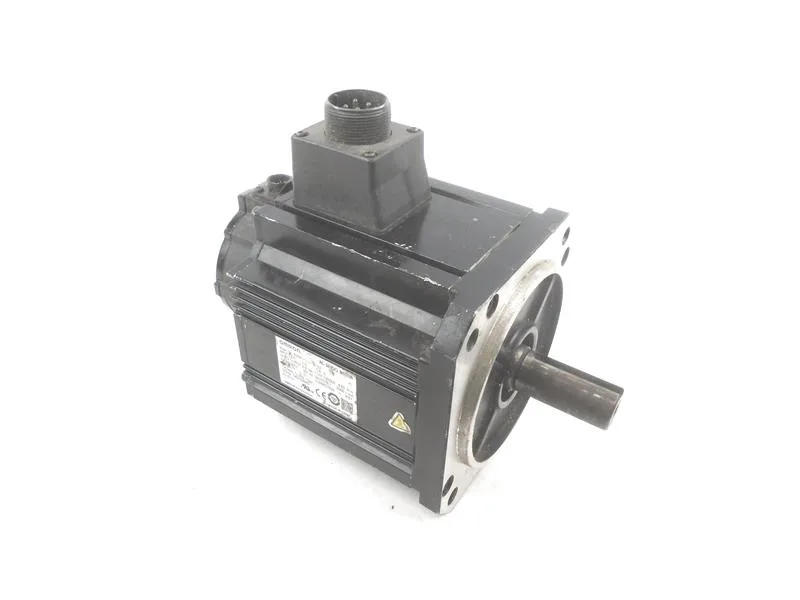

The Omron R88MK2K020FS2 is a G5-series servo motor rated for 9.55 Nm of continuous torque at 2000 min⁻¹ output speed, drawing 5.9 A under load. The voltage window spans 323 to 528 VAC, so it works on 400 VAC three-phase supplies common in European and Asian lines, and also covers 480 VAC North American installations. At 9.55 Nm, this motor handles medium-load indexing, rotary tables, or conveyor drives where the inertia match and duty cycle are within the G5 drive's tuning range.
Fit and integration notes
The frame measures 173 mm wide, 130 mm tall, and 130 mm deep — a compact square-body form factor that fits typical G5 servo mounts. Rated current of 5.9 A at the listed voltage range means the mating drive (Omron G5-series) should be sized for at least that continuous output. The 2000 min⁻¹ base speed is standard for many general-purpose motion profiles; if the application demands higher speed or a different torque curve, a gearbox or a different winding variant would be needed.
