What this motor is and what it delivers

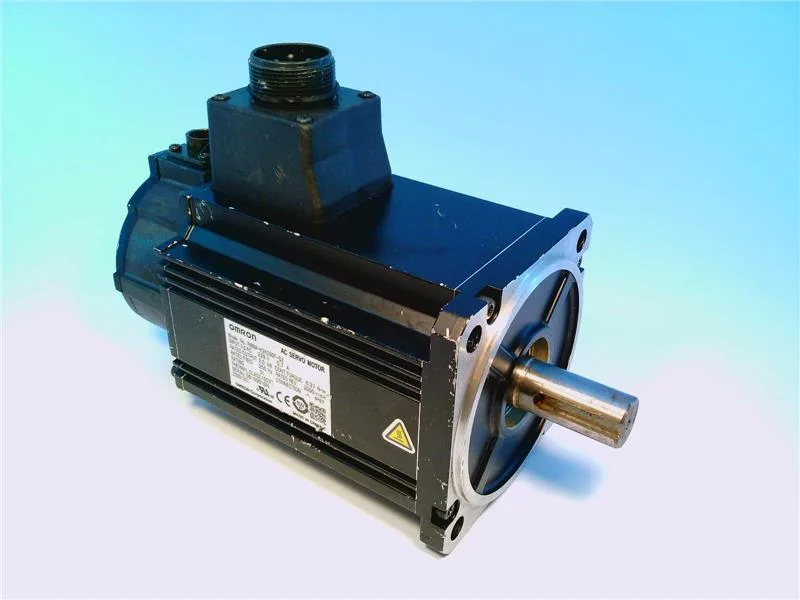

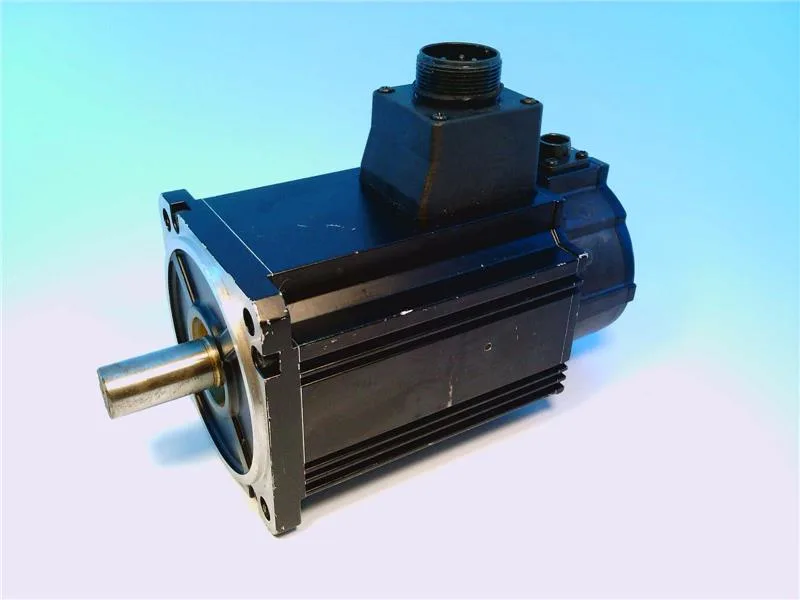

The Omron R88MK2K030FS2 is a G5 Series servo motor delivering 6.37 Nm of torque at a rated speed of 3000 min⁻¹, drawing 5.7 A under load. The operating voltage range spans 323 V to 528 VAC, covering standard three-phase supplies from 400 V to 480 V classes.
Physical fit and panel integration
The motor body measures 179 mm wide, 100 mm high, and 100 mm deep. These dimensions matter for gland-plate clearance and mounting bracket spacing in a cabinet or machine frame. The 100 mm square flange pattern is common for this torque class, but verify the pilot diameter and bolt circle against your existing mount before ordering — the spec sheet does not list the flange standard here.
