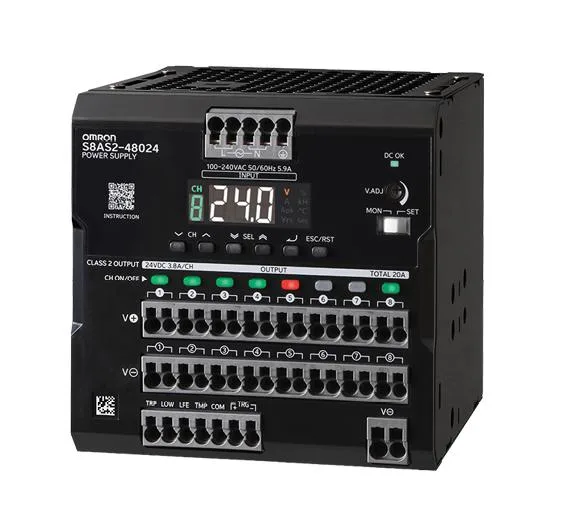

Omron S8AS2-48024-08SN
MPNS8AS2-48024-08SN
The S8AS-2 Smart Power Supply|Compact, intelligent DC power distribution for streamlined control panels and predictive maintenance.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Mounting | DIN Rail |
| Standards | UL508, CSA C22.2, EN/IEC 62477-1, PELV, EN/IEC 61558-2-19 |
| Connection | Push-In Plus Terminal |
| Cooling type | Natural (gravity) |
| Output power | 480 W |
| Enclosure type | Enclosed |
| Output current | 20 A |
| Series operation | No |
| Output voltage DC | 24 V |
| Diagnostic display | Output Voltage, Output Current, Maintenance Forecast, Total Run Time, Temperature |
| Parallel operation | No |
| Overload protection | Yes |
| Under-voltage alarm | Yes |
| Supply voltage range | 100 to 240 VAC |
| Overvoltage protection | Yes |
| Power boost, momentary | No |
| Dimensions h x w x d | 115 H X 115 W X 130.4 D |
| Preventive maintenance alarm output | Yes, via Local Indicator |
MPN
S8AS2-48024-08SN
