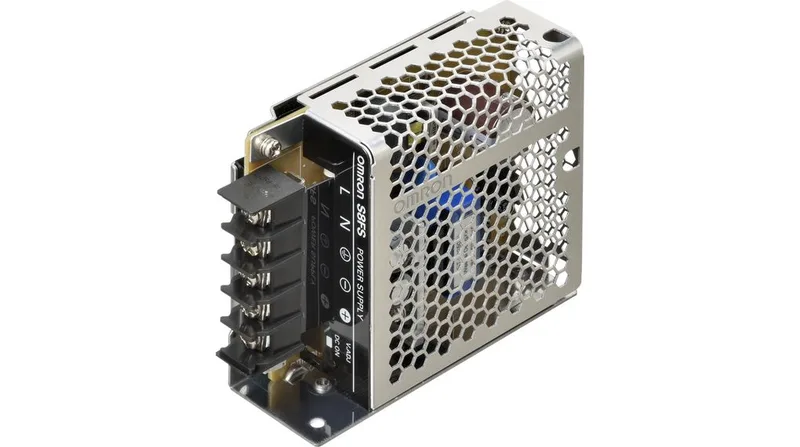

Omron S8FSC02505J
MPNS8FSC02505J
DIN Rail Switch Mode Power Supply 80% 5V 5A 25W Adjustable S8FS-C
$50.62 – $58.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8FS-C |
| Output signal | Adjustable |
| Termination type | Screw Terminal Block |
| Output voltage 1 | 5 V |
| Input voltage max. | 240 V |
| Input voltage min. | 100 V |
| Insulation voltage | 3 kV |
| Input voltage nominal | 100 ... 240 VAC |
| Output voltage nominal 1 | 5 V |
| Output current 1 | 5 A |
| Rated power | 25 W |
| Operating temperature max. | 60 °C |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature min. | -20 °C |
| Depth | 111 mm |
| Width | 35 mm |
| Height | 82 mm |
| MTBF | 135000 h |
| Outputs | 1 |
| Efficiency | 80 % |
| Ripple & noise | 20 mV |
MPN
S8FSC02505J
